Lofted Surface
 |
 |
Ruled Surface
 Use Ruled Surface, rather than
Extend Surface to maintain the
correct taper.
|
 |
Extend Surface
 To facilitate Trim Surface.
|
 |

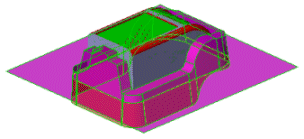

Trim Surface  , using Mutual
to remove material adjacent
to the horizontal ruled surface.Knit Surface  after trim.
|
 |
| Create a plane, parallel to Top
Plane. Sketch rectangle to create a
planar surface.
|
 |
Planar Surface
 |
 |

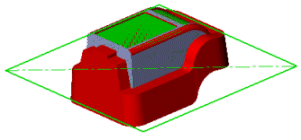

| Trim Surface , using Standard
to trim below the planar surface. |
 |
| After trim, the planar surface is ready
as the basis for tooling split operation. |
 |
