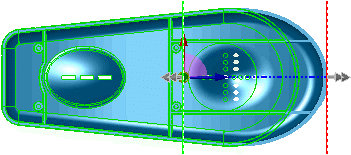

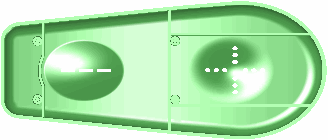

Preview of the part showing taper

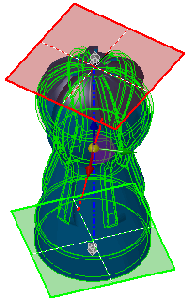

The taper zone is limited by the position of the trim planes.

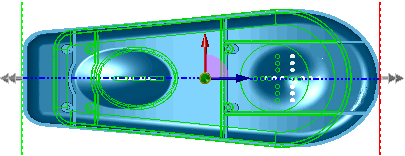

Set the amount of taper by moving the trim planes or triad. To adjust the taper, move the pointer over a trim plane edge to display the pointer, then drag the plane.
You can also set the Taper factor in the PropertyManager.
|
