Coverings for Rectangular Section Routes and Ducts

You can create coverings for rectangular cross section route types including HVAC round ducting and electrical ducting.

From Tools > Routing > Routing Tools > Covering you can:

  • Select the covering material from the covering library.
  • Create a custom covering.
  • Set parameters like thickness and covering name.
  • Add multiple layers of covering.

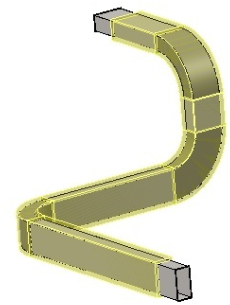

Covering for a rectangular duct
