You can use Instant2D to dynamically manipulate sketch dimensions in sketch mode. You can click a dimension and quickly edit its values without clicking Rebuild to reset the geometry.
With the enhanced
Instant2D ![](ohp1465844602274.image)
you can:
- View the dimension handles or Instant2D Rulers
while selecting dimensions in sketch mode.
- Edit dimensions for any dimension type in the dimension input value box by clicking a dimension value.
Instant2D in sketch mode is available for 2D and 3D sketches.
![](uuf1450373145302.image) |

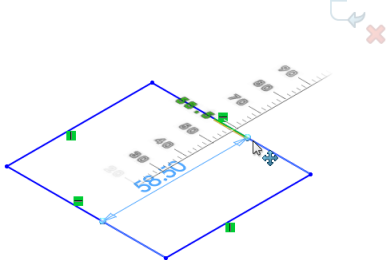

Instant2D Rulers |
![](lym1450373145911.image) |

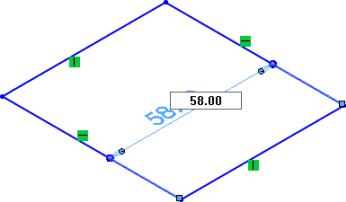

Dimension input value box |
