Style Spline Support for B-Splines

You can create B-Splines of , , or with the Style Spline tool. You can adjust the smoothness of the curve by manipulating the degree of the curve.

Previously, you could only create a Bezier curve with the Spline tool. When converting a spline into a Style Spline, many unusable points were created, making it difficult to work with.

You can have one-to-one conversion from a Spline to a Style Spline since the resulting Style Spline will now be a degree 3 B-Spline.

Click Tools > Sketch Entities > Style Spline . In the Insert Style Spline PropertyManager, select from options B-Spline Degree 3, B-Spline Degree 5 and, B-Spline Degree 7.

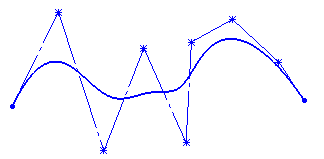

Bezier curve

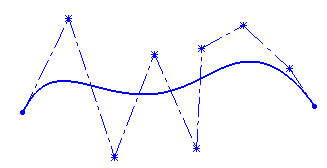

Degree 3 B-Spline
Degree 5 B-Spline
Degree 7 B-Spline
The minimum points required to create 3º, 5º, and 7º B-Splines are 4, 6, and 8 respectively.
