Curvature Continuous Edge Fillets

You can define the edges of constant and variable fillets as curvature continuous. This option creates a smoother curvature between adjacent surfaces.

Previously, this option was only available for face fillets.

  1. Open install_dir\samples\whatsnew\parts\c2edgefillet.sldprt.

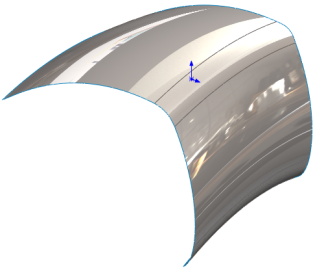

  2. Select the edge shown.

  3. Click Fillet (Features toolbar) or Insert > Features > Fillet/Round.
  4. In the PropertyManager, under Fillet Type, click Constant Size Fillet.
  5. Under Items To Fillet, select Tangent Propagation and Full preview.

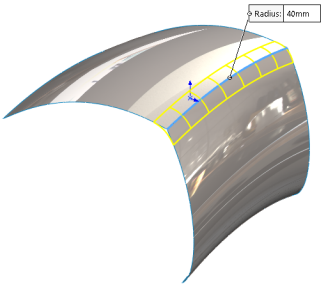

  6. Under Fillet Parameters:
    1. Select Symmetric in the drop-down list.
    2. Set Radius to 40.mm.
    3. In Profile, select Curvature Continuous.

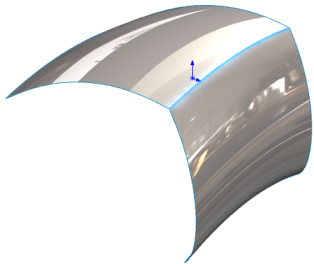

  7. Click .
