Mirroring Assembly Features

You can mirror assembly features.

To mirror assembly features:

  1. Open install_dir\samples\whatsnew\assemblies\mirror\assembly_feature.sldasm.

  2. Click Assembly Features (Assembly tab on the CommandManager) and click Mirror , or click Insert > Assembly Feature > Mirror.
  3. In the PropertyManager:

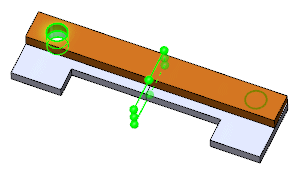

    1. For Mirror Face/Plane, select the Front Plane of the assembly.
      You can make selections in the flyout FeatureManager design tree.

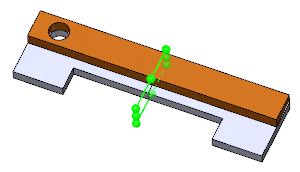

    2. For Features to Mirror, select Hole1.

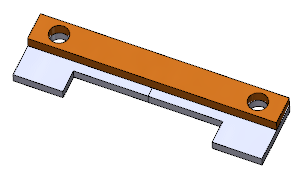

  4. Click .
