View > Hide/Show

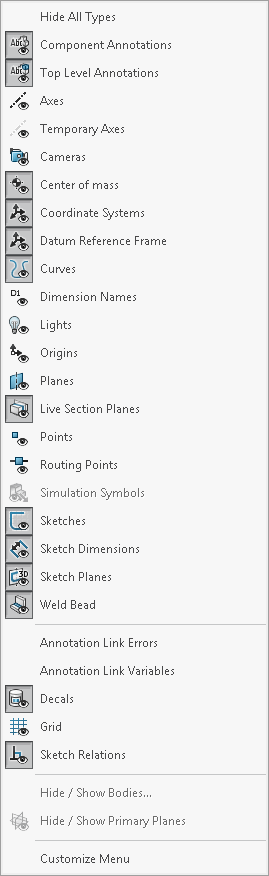

NOTE: Available enumerators for View menu items appear in alphabetical order in the following table.



Setting

Get/Set Methods

Return Value or <Value>

Comment

Axes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display axes in graphics area

Cameras

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCameras, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCameras, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display cameras


Component Annotations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCompAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCompAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display component annotations; for assemblies only

Coordinate Systems

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display temporary axes in graphics area

Curves

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCurves, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCurves, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display curves in graphics area

Datum Reference Frame

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDatumCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDatumCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display datum coordinate systems

Dimension Names

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swShowDimensionNames, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swShowDimensionNames, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display dimension names

Hide All Types

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewDisplayHideAllTypes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewDisplayHideAllTypes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to hide all items in table

Lights

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLights, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLights, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display lights

Live Section Planes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLiveSections, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLiveSections, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display live sections in graphics area

Origins

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayOrigins, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayOrigins, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display origins in graphics area

Planes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display planes in graphics area

Routing Points

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints2, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints2, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayRoutePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayRoutePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display routing or reference points in graphics area

Simulation Symbols

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySimulationSymbol, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySimulationSymbol, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display simulation symbols (for SOLIDWORKS Simulation only)

Sketch Dimensions

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHideShowSketchDimensions, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(  swUserPreferenceToggle_e.swHideShowSketchDimensions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch dimensions

Sketch Relations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewSketchRelations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewSketchRelations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch relation symbols

Sketches

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketches, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketches, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies to display sketches in graphics area

Temporary Axes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayTemporaryAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayTemporaryAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display temporary axes in graphics area


Top Level Annotations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)
Boolean value
Specifies whether to display all annotations; for assemblies only

Weld Bead

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display weld beads
