> File > Save As

File > Save As

Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

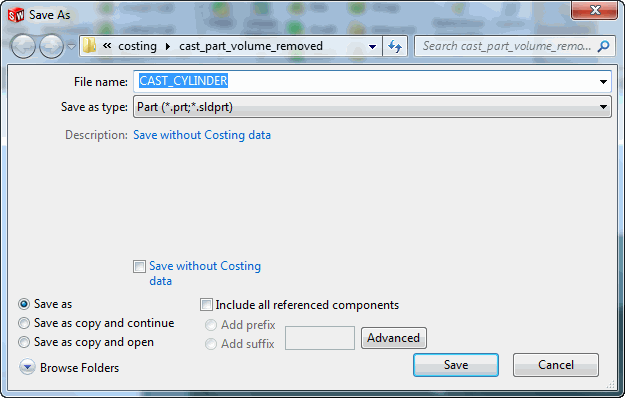

Save without Costing data

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Specifies whether to save the sheet metal part without including any Costing data

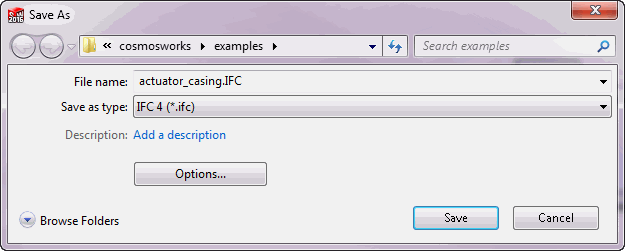

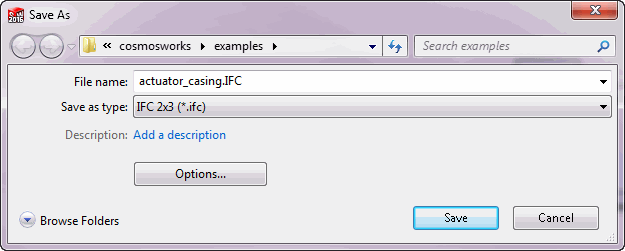

Save as type - IFC 2x3 or IFC 4

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat, <Value>)

23 = IFC 2x3
4 = IFC 4

Specifies the IFC format in which to save a part

Search 'File > Save As' in the SOLIDWORKS Knowledge Base.
