> File > Save As > Save as type > VRML > Options

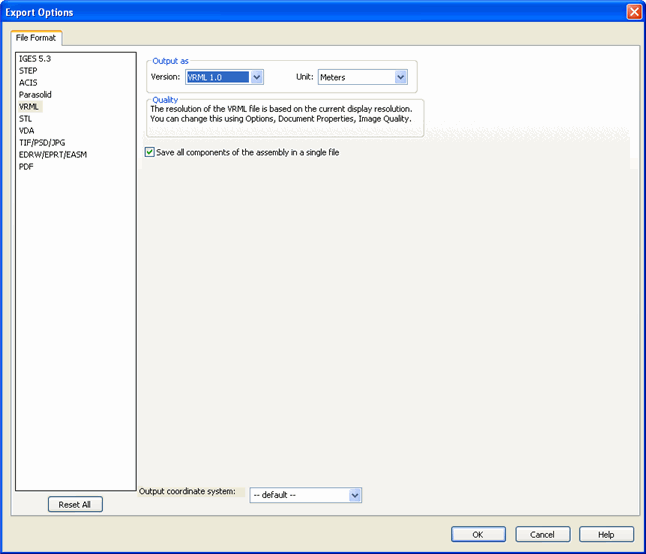

File > Save As > Save as type > VRML > Options

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Output as - Version	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlVersion) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlVersion, swVrmlOutputVersion_e.<Value>)	Values as defined in swVrmlOutputVersion_e
Output as - Unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlUnits) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlUnits, swLengthUnit_e.<Value>)	Any of the following swLengthUnit_e values: 0 = swMM (millimeters) 1 = swCM (centimeters) 2 = swMETER 3 = swINCHES 4 = swFEET
Save all components of the assembly in a single file	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExportVrmlAllComponentsInSingleFile) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExportVrmlAllComponentsInSingleFile, <OnFlag>)	Boolean value	Specifies whether to save all of the components of an assembly to a single VRML (.wrl) file
Output coordinate system	IModelDocExtension::GetUserPreferenceString(swUserPreferenceString_e.swFileSaveAsCoordinateSystem, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceString_e.swFileSaveAsCoordinateSystem, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	Contains the name of the transform coordinate system; an empty string signifies that the default coordinate system does not require a transform; coordinate settings are not saved with the document; they must be selected at export time

Search 'File > Save As > Save as type > VRML > Options' in the SOLIDWORKS Knowledge Base.
