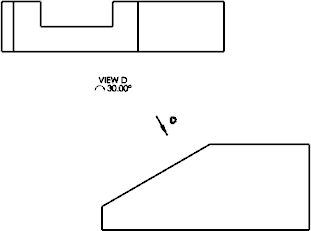

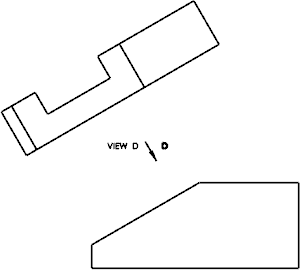

You can set auxiliary views and section views to be orthographically aligned to the drawing sheet.
Right-click the drawing view and click Align Drawing View > Horizontal to Sheet Clockwise or Horizontal to Sheet Counterclockwise.
