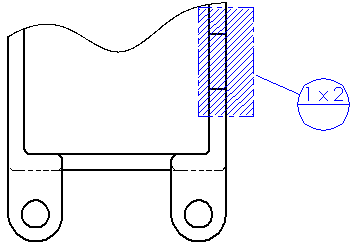

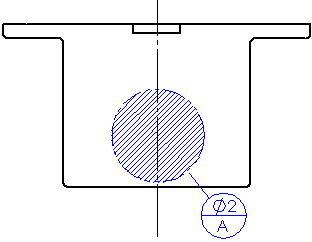

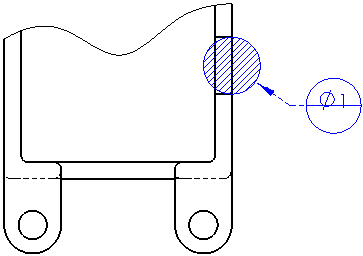

Datum Target PropertyManager Attach a datum target and associated symbol to a model face or edge. To open the Datum Target PropertyManager: Click Datum Target (Annotation toolbar), or click Insert > Annotations > Datum Target. Style Define Style. Settings Target symbol. Select the target symbol style: Target Symbol Target symbol with area size outside Creates a leader to the balloon. No target symbol Target area. Select the target area display: x target area (point) Circular target area Applies crosshatch to the circular target area. Rectangular target area Applies crosshatch to the rectangular target area. Do not display target area Target area size Specify Width and Height (for rectangles) or Diameter (for X's and circles). The value in the first field (2) controls the diameter of the target area circle. The value in the first field (1) controls the rectangle width. The value in the second field (2) controls the height. Datum references Specify up to three references (balloons). The datum reference appears in the lower half of the balloon. Leader Select a leader style to control bends, leader font, and arrowhead styles: Bent, solid leader Bent, dashed leader Straight, solid leader Straight, dashed leader Select an Arrow style. Layer In drawings with named layers, select a layer. Parent topicDatum Targets
(Annotation toolbar), or click .
