Pipe Nipples

You can use Nipples for connecting two fittings in a route assembly.

A Pipe nipple is a short piece of pipe with a male pipe thread at both ends or either end. Support for five types of pipe nipples is provided in the Routing Library Manager.

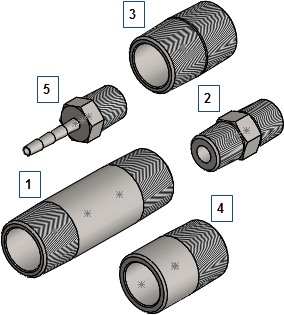

Five new types of Nipples are provided in the Design Library.



  1. Barrel nipple
  2. Hex nipple
  3. Close nipple
  4. Weld nipple
  5. Hose nipple
