You can use the 3D PMI Compare tool to compare DimXpert annotations, reference dimensions, and other annotations between two part documents.
![](zlx1462799084285.image) |

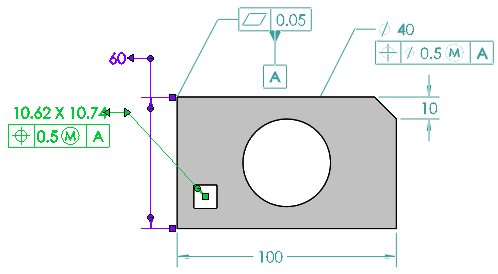

Reference document |
![](cuf1462799710428.image) |

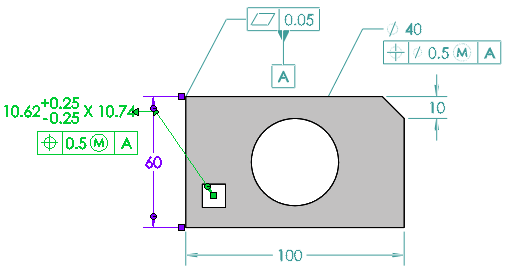

Modified document |
To compare 3D PMI between parts:
- Click .
- In the Task Pane, select the Reference document and Modified document.
- Click Run Comparison.
