Aligning and Grouping Parallel Dimensions To align and group parallel dimensions: In a drawing, hold Ctrl and select two or more dimensions that you want to align. You can also select the group of dimensions by holding the left mouse button and dragging a box around the dimensions. Click Align Parallel/Concentric on the Align toolbar, or click Tools > Dimensions > Align Parallel/Concentric . The dimensions are arranged with a uniform distance between the arrows. They also are grouped, and retain the parallel spacing when moved. Aligned parallel Aligned concentric
Specifying the Distance Between Dimensions To specify the distance between dimensions: Click Tools > Options > Document Properties > Dimensions. Under Offset distances, specify a value for From last dimension (1) (the distance between dimensions as shown). 1 From last dimension 2 From model Click OK. Related reference Document Properties - Dimensions

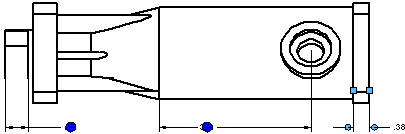

Highlighting Dimensions that Are Aligned to One Another To highlight dimensions that are aligned to one another: Right-click a dimension that was created with Align Parallel/Concentric and click Show Alignment. Dimensions that are aligned are marked with blue dots.
Removing Dimensions from a Set of Aligned Dimensions To remove a dimension from a set of aligned dimensions: Right-click a dimension that was created with Align Parallel/Concentric and click Break Alignment.
