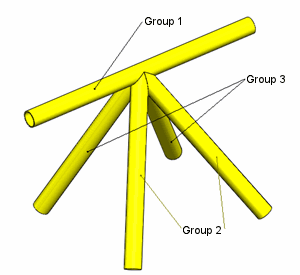

Model with three weldment groups.
![weldment_corner_treatment_model.gif](tmq1450452568454.image)
Section view with trim order:
- Group 1 - Trim order 1
- Group 2 - Trim order 2
- Group 3 - Trim order 3
Result: - Group 1 trims groups 2 and 3.
- Group 2 trims group 3.
|

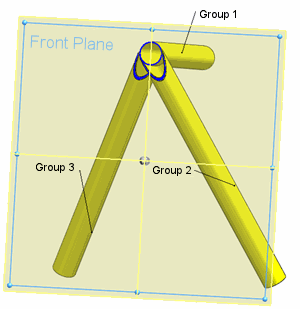

![weldment_corner_treatment_example1.gif](chy1450452568994.image) |
Section view with trim order:
- Group 1 - Trim order 1
- Group 2 - Trim order 2
- Group 3 - Trim order 2
Result: - Group 1 trims groups 2 and 3.
- Groups 2 and 3 miter each other.
|

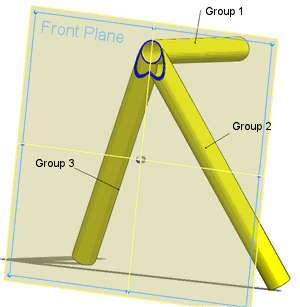

![weldment_corner_treatment_example2.gif](ydk1450452569570.image) |
Section view with trim order:
- Group 1 - Trim order 2
- Group 2 - Trim order 1
- Group 3 - Trim order 1
Result: - Groups 2 and 3 trim group 1.
- Groups 2 and 3 miter each other.
|

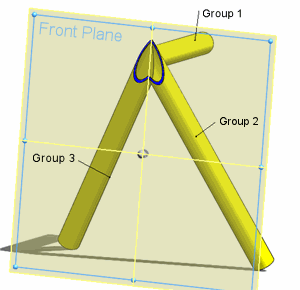

![weldment_corner_treatment_example3.gif](bir1450452570153.image) |
