Punch Tables

You can insert a punch table in the flat pattern view of sheet metal parts in drawings.

Punch tables contain the form features and library features used in sheet metal bodies including:
Tag Annotation added to each punch feature in the flat pattern
X Location Distance from X-axis to the point of insertion of the tool
Y Location Distance from Y-axis to the point of insertion of the tool
Punch ID Property of the forming tool/library feature used in the component
Quantity Number of times form/library feature is used in the flat pattern
Angle Angle between X-axis and the tool

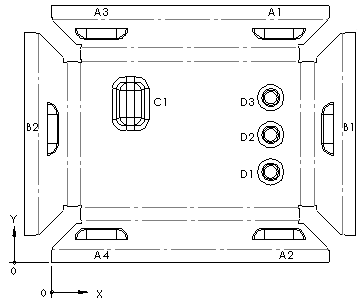

Punch Table Part - flat-pattern-view

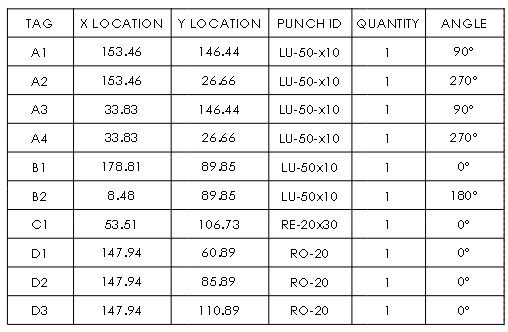

Punch Table
