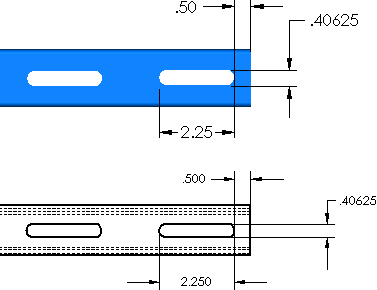

As you create a model, you can include detailing (dimensions, notes, symbols, etc.), and then insert the dimensions and annotations from the model into a drawing using:
- Annotation Views
- Model Items PropertyManager
Before you create drawings, prepare parts by arranging dimensions, creating configurations, and adding properties. Drawings from prepared parts require less manipulation.
![](pdy1450448847300.image)
Once in the drawing, you can add reference dimensions, annotations, bills of materials, revision tables, etc.
Annotations and reference dimensions added in drawings do not affect part or assembly documents.
