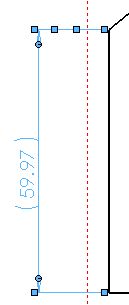

Jogging Extension Lines You can right-click linear dimension extension lines and select Display Options > Jog to place a jog in the line. The dimension extension line after selecting Jog The dimension extension line after dragging a jog point To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog. Parent topicDimension Extension Lines Related concepts Example: Smart Extension Lines Example: Dimension Line Terminology Attaching Dimension Extension Lines Related tasks Changing the Attachment Point or Length of Dimension Extension Lines Making Slanted Dimension Extension Lines Flipping the Direction of Dimension Leaders Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog . Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
Jogging Extension Lines You can right-click linear dimension extension lines and select Display Options > Jog to place a jog in the line. The dimension extension line after selecting Jog The dimension extension line after dragging a jog point To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog. Parent topicDimension Extension Lines Related concepts Example: Smart Extension Lines Example: Dimension Line Terminology Attaching Dimension Extension Lines Related tasks Changing the Attachment Point or Length of Dimension Extension Lines Making Slanted Dimension Extension Lines Flipping the Direction of Dimension Leaders Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog . Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog .
Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
