RealView Graphics

RealView Graphics is hardware (graphics card) support of advanced shading in real time, including self-shadowing and scene reflections.

When you apply an appearance, use RealView Graphics for a more realistic model display. RealView Graphics is available with supported graphics cards only.

For the latest information on graphics cards that support RealView Graphics display, go to

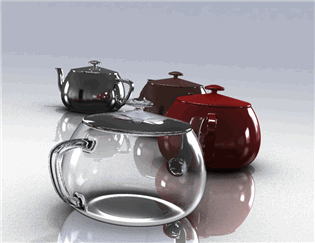

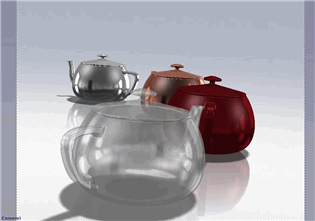

Comparison of RealView and PhotoView 360:

RealView Graphics PhotoView 360 Rendering
hardware software
dynamic static images
retains rendering during motion must be rendered again after motion
displays scenes, environment reflections, and self-shadows from the first directional light provides customizable scene control; displays inter-reflections, shadows from all light sources, depth of field, and high dynamic range reflections
