Linking a Note to a Table Cell

You can link a note to the contents of any BOM or hole table cell.

To link a note to a table cell:

  1. In a drawing with a table, insert a note.
    1. Click Insert > Annotation > Note.
    2. Click to place the note.
    3. Click to edit the note.
  2. In the PropertyManager, under Text Format, select Link Table Cell .

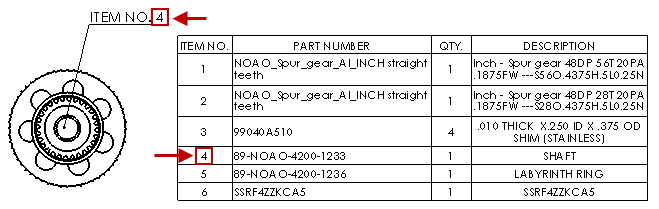

  3. In the table, select a cell.
  4. Click .

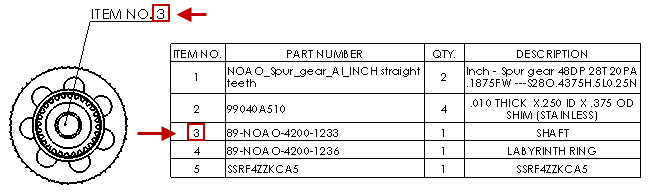

Because the note is linked to a table cell, when the cell value changes, the note updates.
