What's Wrong Enhancements

What's Wrong details and calls to action appear within the FeatureManager design tree, breadcrumbs, and graphics area. You no longer need to open the What's Wrong dialog box.

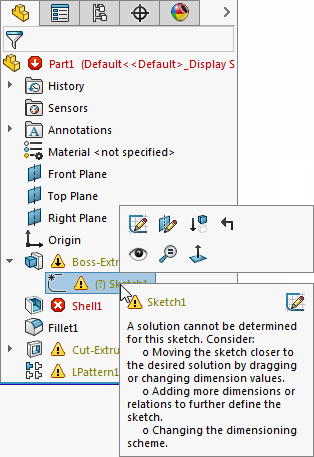

To display a contextual What's Wrong box, select an error or warning in the FeatureManager design tree, breadcrumbs, or graphics area. The box describes the issue and offers suggestions to correct it. Links appear to either Edit Feature or Edit Sketch . Depending on the situation, there may also be links to Preview and Help .

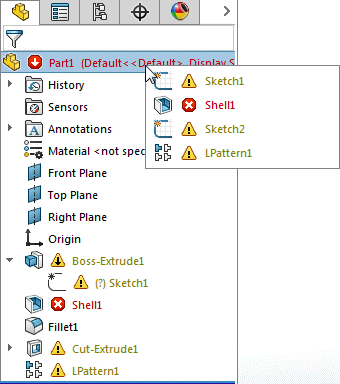

To display a list of all errors and warnings, left-click the top node in the FeatureManager design tree. Click an item in the list to select the item in the FeatureManager design tree.

You can still display the What's Wrong dialog box. Right-click the feature with an error or warning and click What's Wrong.
