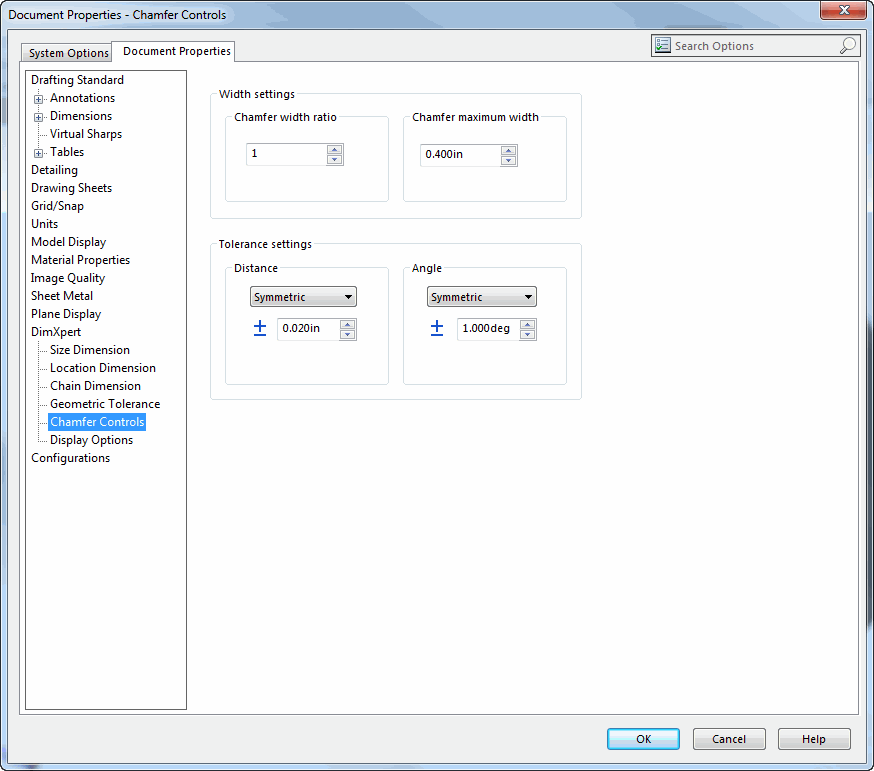

Document Properties > DimXpert > Chamfer Controls



Setting

Get/Set Methods

Return Value or <Value>

Comments

Width settings - Chamfer width ratio

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferWidthRatio, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferWidthRatio, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the chamfer width ratio

Width settings - Chamfer maximum width

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferMaxWidth, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferMaxWidth, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the maximum chamfer width

Tolerance settings - Distance - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferDistanceTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferDistanceTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets chamfer distance tolerance type

Tolerance settings - Distance - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferDistanceTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferDistanceTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance
for chamfer distances

Tolerance settings - Distance - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferDistanceTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferDistanceTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for chamfer distances

Tolerance settings - Distance - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferDistanceBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferDistanceBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for chamfer distances

Tolerance settings - Angle - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the chamfer angular tolerance type

Tolerance settings - Angle - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance
for chamfer angles

Tolerance settings - Angle - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChamferAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for chamfer angles

Tolerance settings - Angle - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChamferAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for chamfer angles
