> Document Properties > Weldments

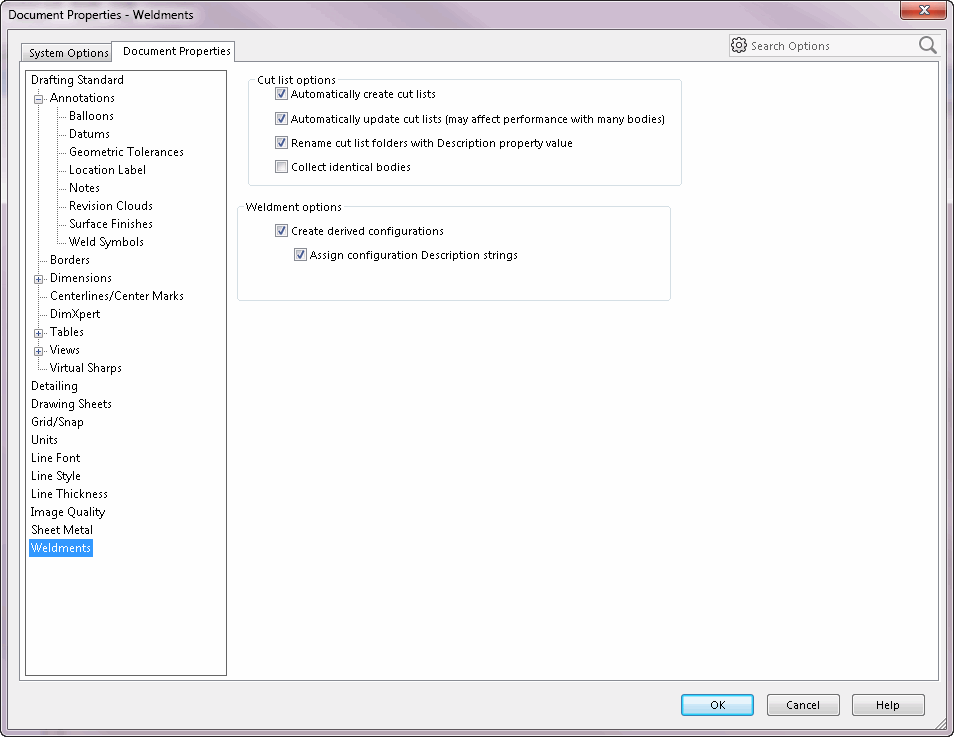

Document Properties >Weldments

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comments
Cut list options - Automatically create cut lists	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList, <OnFlag>)	Boolean value	Specifies whether to automatically create cut lists
Cut list options - Automatically update cut lists (may affect performance with many bodies)	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate, <OnFlag>)	Boolean value	Specifies whether to automatically update cut lists
Cut list options - Rename cut list folders with Description property value	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue, <OnFlag>)	Boolean value	Specifies whether to automatically rename cut list folders using the Description property value
Cut list options - Collect identical bodies	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies, <OnFlag>)	Boolean value	Specifies whether to collect identical bodies
Weldment options - Create derived configurations	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations, <OnFlag>)	Boolean value	Specifies whether to create derived configurations; affects newly added configurations only
Weldment options - Assign configuration Description strings	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings, <OnFlag>)	Boolean value	Specifies whether to assign configuration Description strings; swDisableDerivedConfigurations must be true for this setting to be applicable
