The Rotate Orientation option rotates the 0 degree reference orientation by 90 degrees (about the blue arrow of triad) for a face of shell. The option is similar to the Rotate 0º Reference but applies to individual faces of a shell.
For a description of arrows and what they represent, see Ply Angle.
 |

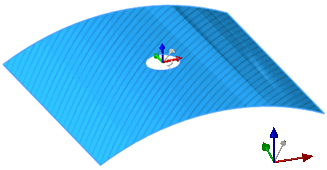

| Rotate Orientation is cleared for face. |
 |

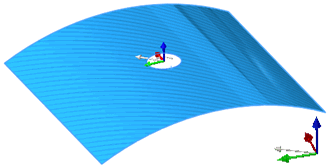

| Rotate Orientation option is selected for face.
|
For the shell face above, the stripes rotate about the axis normal to the plane (blue arrow) by 90 degrees in counter-clockwise direction. As a result, the 60 degrees ply angle (yellow arrow), when Rotate Orientation is selected, corresponds to -30 degrees ply angle before rotation.
