Manually Ballooning Drawings

Manually ballooning drawings gives you more control over how SOLIDWORKS Inspection adds balloons to drawings.

When you select automatic ballooning, the software balloons all characteristics in the drawing, using the specified sort order (clockwise or counter-clockwise).

If you select manual ballooning, the software:

  • Balloons only the specific characteristics you identify.
  • Orders the balloons based on the order in which you select them.

To manually balloon drawings:

  1. Click New Inspection Project (SOLIDWORKS Inspection CommandManager).
  2. Select a project template.
  3. On the General Settings tab of the Create Inspection Project PropertyManager, under Characteristic Info, for Extraction, select Manual.
  4. Click to validate the project settings.
  5. Click Add Characteristic (SOLIDWORKS Inspection CommandManager).
  6. In the graphics area, use one of the following techniques to select the characteristics to balloon:

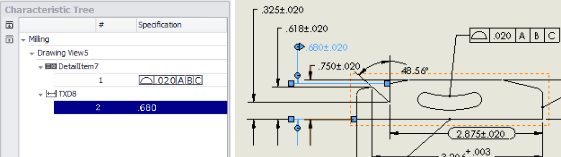

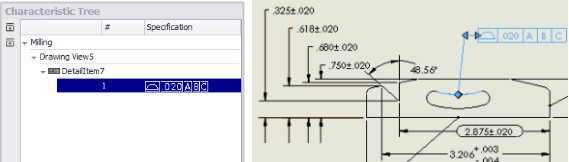

    • Select individual characteristics.

      The characteristics are added to the Characteristic Tree in the order in which you select them.

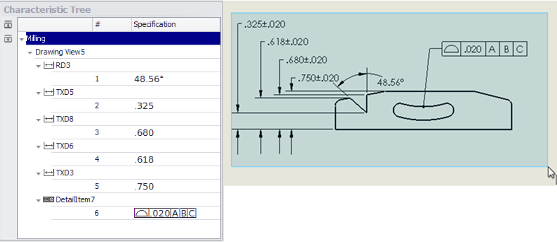

    • Box select a set of characteristics.

      All the characteristics within the box are added to the Characteristic Tree.

    To remove a characteristic, click it in the graphics area.
    If you want to balloon most but not all characteristics, you can box select the entire drawing and then remove characteristics you do not want to balloon.
  7. Click Add/Edit Balloons (SOLIDWORKS Inspection CommandManager).

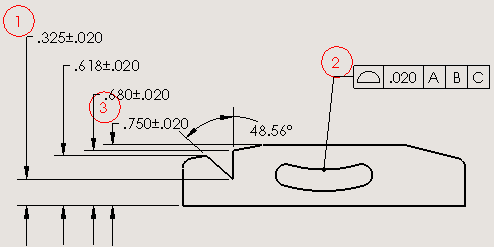

    The software creates balloons for the characteristics you selected, in the order in which you selected them.
    This step is not needed if you selected Auto Balloon in the Inspection Project Settings.
