Example: Using Hide Behind Plane

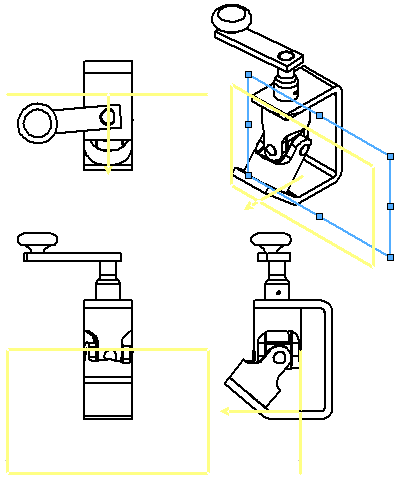

The plane in the isometric view will hide components in the direction of the arrow. The plane and arrow are also displayed in the other views to aid in locating the components to be hidden.

The resulting isometric view
