Choosing Alternative Fillet Corners

To choose alternative fillet corners:

  1. Right-click a fillet corner and select Edit Feature.
    In the PropertyManager, the corner appears under Corner Faces select_face_planar.png.

  2. Click Show Alternatives.

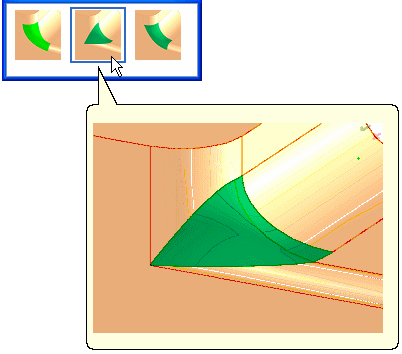

  3. In the pop-up, click a preview to replace the selected fillet corner.
  4. Click .
Parent topicUsing the FilletXpert
Related tasks
Creating Multiple Fillets
Invoking the FeatureXpert
Changing or Removing Fillets
Copying Fillet Corners
