Flat pattern drawing views can display bend line notes or bend tables.
Sheet metal bend line notes allow:
- Editing content
- Modifying default format. Edit install_dir\lang\language\bendnoteformat.txt
- Maintaining associative capabilities. Change the bend angle, bend direction, or bend radius, and the notes update in the drawing.
- Positioning notes. Change the display position of bend notes.
- Merging collinear notes. To merge collinear bend notes into a single note, multi-select the notes, right-click, and select Merge Bend Notes.
- Unmerging notes. To unmerge bend notes, right-click the merged note and click Unmerge Bend Notes.
You can control the precision for sheet metal bend line notes in .
In the
Drawing View PropertyManager, you can:
- Show or hide bend notes
- Set the bend direction, bend radius, bend order, and bend allowance
- Edit the text, including removing the R for the bend radius parameter

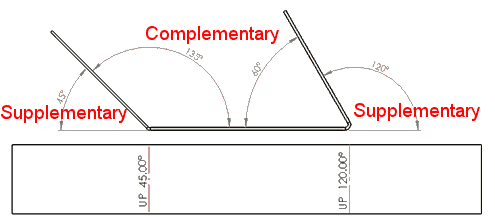

- Display complementary and supplementary bend angles
