| Drag geometry and dimension
manipulators to resize features.
|
|
| For assemblies, you can edit
components within the assembly, or edit assembly-level sketches,
assembly features, and mate dimensions. |
Video: Instant3D for Assemblies |
| Use on-screen rulers to precisely
measure modifications. |
 |
| Create extruded bosses and cuts from
selected contour or sketches. |
 |
| Snap to geometry using drag handles. |
 |
| Live Section Planes. Dynamically
section model geometry to view and manipulate features. |
 |
| Edit internal sketch contours. |
Video: Instant3D - Edit Internal Sketch Contours |
| Mirrors and Patterns. You can use
Instant3D to manipulate mirrored or patterned geometry. The manipulators available on the selected
transformed geometry match those available on the corresponding seed
geometry. For example, side face manipulators, end face
manipulators, fillet manipulators, etc.
When
you drag transformed geometry, the entire model updates, including
seed geometry.
|
Original part with
mirrored extrude. Example shows using the manipulator
on the mirrored feature to modify the mirror and seed
features.
Video: Instant3D - Mirrors and Patterns |

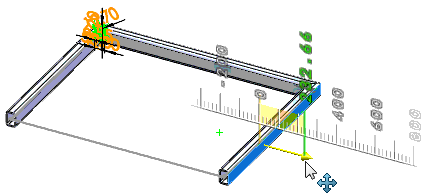

| Instant3D works on weldment parts for
2D and 3D weldments. |
 |
