You can flip the tangency
direction of certain curved sketch entities. This includes arcs and splines.
To control the
tangency direction:
-
Open a part file that contains an arc with a tangent
failure.
-
In the FeatureManager Design Tree, right-click the sketch containing the arc
with the tangent failure and click Edit Sketch.
-

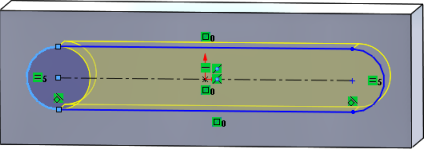

In the graphics area, right-click the arc and click
Reverse Endpoint Tangent on the shortcut menu.

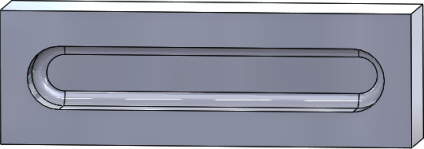

The software reverses the tangency and flips the arc.
-
Click .
