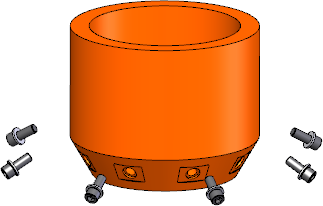

Radial Explode You can explode components aligned radially/cylindrically about an axis in one step. You can also explode radially by diverging along an axis. To radially explode components about an axis: In an assembly document, click Exploded View (Assembly toolbar) or Insert > Exploded View. In the Explode PropertyManager, under Explode Step Type, click Radial step . In Settings, select the components to explode. In the graphics area, drag the handle and release. Click . Parent topicCreating Exploded Views (Assemblies) Related tasks Auto-Spacing Components Using a Subassembly's Exploded View Editing an Explode Step (Assemblies) Deleting an Explode Step Including Rotations in Exploded Views
