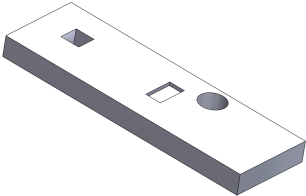

Merging Volumes with the Intersect Tool

To merge materials in the Compare Volume folder into apple.sldprt:

  1. From the FeatureManager design tree, select the following:
    • Cut-Extrude3
    • Material Added1
    • Material Added2
    • Material Removed1
  2. Click Insert > Features > Intersect .
  3. Click Create both and click Intersect.
  4. Under Regions to Exclude. click Region 3.
  5. Then click Merge Results and .
