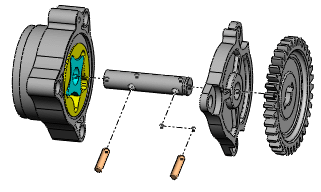

Showing Explode Lines in Exploded Views You can add an explode line manually to show relationships between items in an exploded view. Contents Adding Explode Lines To manually add an explode line to an exploded view, use an explode line sketch (a type of 3D sketch). Editing an Explode Line Sketch You can edit an explode line sketch to add, delete, or change explode lines. Route Line PropertyManager Parent topicExploded Views in Assemblies Related tasks Creating Exploded Views (Assemblies) Copying Exploded Views Exploding and Collapsing an Exploded View Related reference Smart Explode Lines Explode PropertyManager (Assemblies)
