DB Link

The DB link ensures component data integrity by using properties from an approved corporate database.

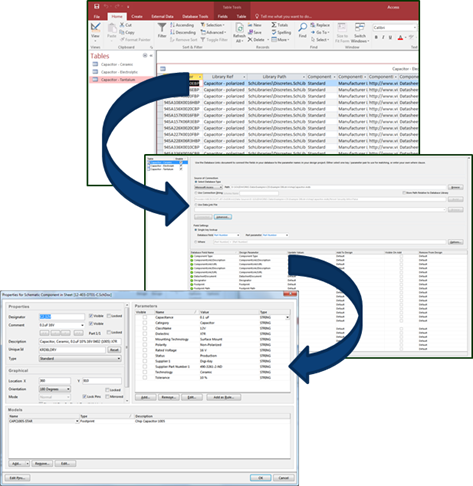

You can connect SOLIDWORKS PCB schematic parts to engineering or corporate databases of component and parametric data, such as:

  • Procurement data
  • Electrical parameters
  • Device documentation
You can also transfer mapped information from database records to design component parameters.
