SOLIDWORKS Visualize 2018
introduces an all new decal system, providing several key improvements and new
functionality.
Support of all SOLIDWORKS Decal Types
|
Cylindrical
|
Maps all points onto a cylinder
|
|
Spherical
|
Maps all points onto a sphere
|
|
Planar/Projection
|
Maps all points onto a specified plane and then projects the decal onto
the reference entity
|
|
Label
|
Maps decals onto the model faces, including multiple contiguous
nonplanar surfaces with no stretching or shrinking
|
 |

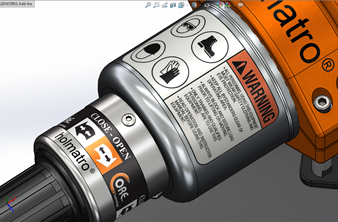

| SOLIDWORKS |
 |

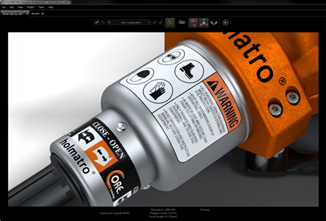

| SOLIDWORKS Visualize |
Animation Keyframe Support
You can create unique decal animations by right-clicking a decal and clicking
Add Keyframe. You can scale and position decals. In
addition, you can animate the Opacity (visibility) to show
items such as multiple decal options, slide shows, flashing billboards, and
flickering TV screens.
Additional Key Improvements
- Floating decal issues, with noticeable drop shadow, are resolved
- Improved overall performance and files with many decals are handled
properly
- No limit on the number of decals per project/part
- Support for up to 6 overlapping decals on a single part
