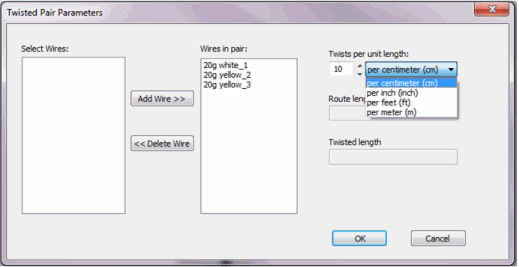

> Twisted Pair Parameters

Twisted Pair Parameters

Setting

Get/Set Methods

Return Value or <Value>

Comments

Twists per unit length - spin box

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTwistCountValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTwistCountValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies the number of twists per unit length that the wires require in an electrical route; see SOLIDWORKS Routing Help for details about twisted pairs

Twists per meter

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swTwistCountValuePerMeter, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swTwistCountValuePerMeter, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

For example:

If swTwistCountValue is...	Desired unit is...	Then swTwistCountValuePerMeter is...
10	per centimeter (cm)	1000 (1 m = 100 cm)
	per inch (inch)	393.7 (1 m = 39.37 in)
	per feet (ft)	32.8 (1 m = 3.28 ft)
	per meter (m)	10

Specifies the number of twists per meter for the twisted pairs in an electrical route; see SOLIDWORKS Routing Help for details about twisted pairs
