System Options > Export > Parasolid

This topic contains two tables. The information in the table:

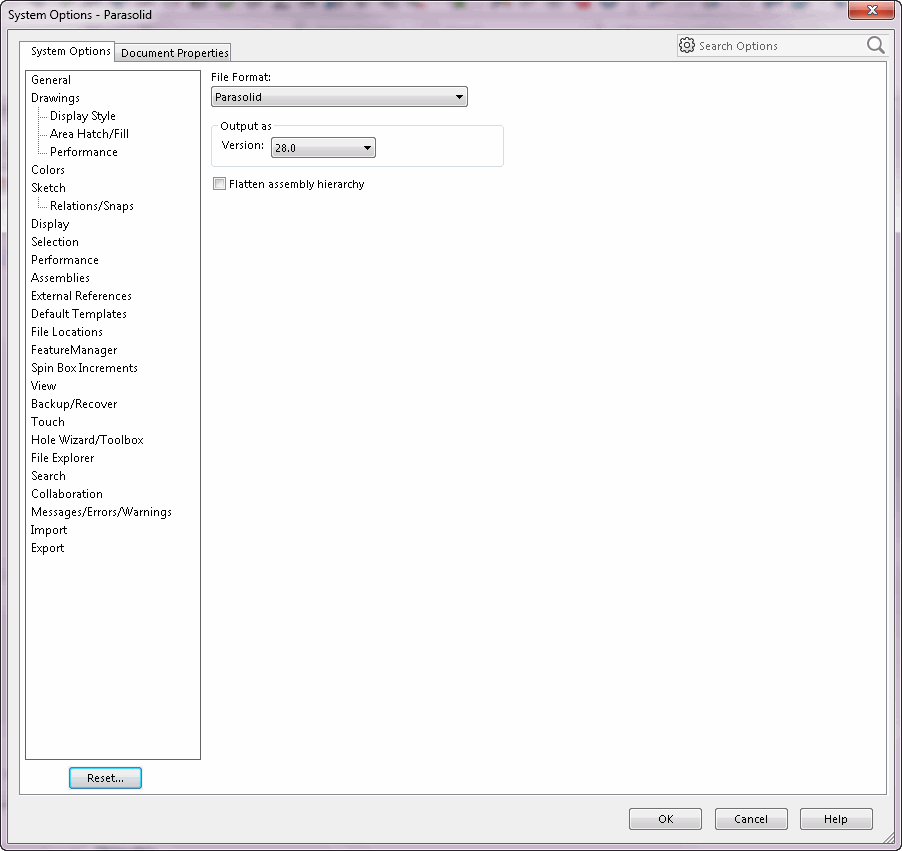

appearing immediately after the screen capture corresponds to the settings on that dialog.
titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > Parasolid in File Format.

- or -

Click File > Save As.
In Save as type, select Parasolid or Parasolid Binary.
Click Options.

Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Output as - Version

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swParasolidOutputVersion)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swParasolidOutputVersion, swParasolidOutputVersion_e.<Value>)

See swParasolidOutputVersion_e for valid options

Flatten assembly hierarchy

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swXTAssemSaveFormat)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swXTAssemSaveFormat, <OnFlag>)

Boolean value

Specifies whether to flatten assembly hierarchy in Parasolid output; for assemblies only

Obsolete Enumerators

Enumerator	Comment
swFileSaveAsCoordinateSystem	Obsolete
