Hole-to-Edge Distances

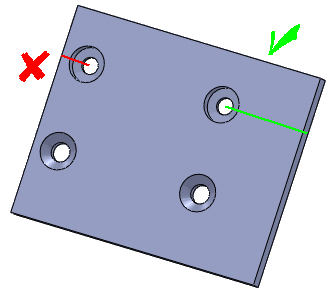

If a hole is too close to a part edge or bend, the edge might become distorted.

To configure this rule, set Simple Hole-Part Edge Distance to Thickness Ratio and Countersink-Part Edge Distance to Thickness Ratio.
