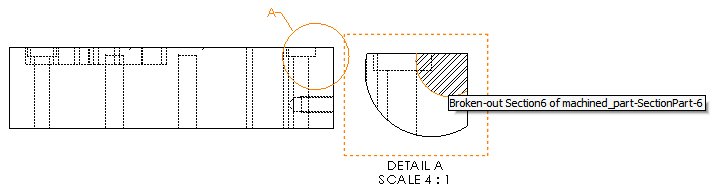

Broken-Out Section View on Detail View

You can add broken-out section views to detail views.

To add a broken-out section view to a detail view:

1. In a detail view, click Insert > Drawing View > Broken-out Section.
2. Sketch a closed profile such as a spline.
3. In the PropertyManager, set options.
4. Click .
