You can select groups of
facets in the graphics area with the Paint Select Tool.
To select
facets using paint select:
-
In the graphics area, select a mesh BREP body, right-click
Selection Tools and click Paint Select
Facets.
-

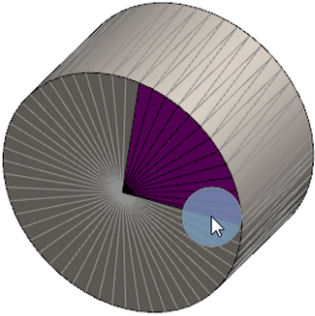

Press the left mouse button and hold while you drag the pointer
and select the facets.
The facets that intersect with the
Selection Circle
are highlighted.
-
Adjust the radius of the Selection
Circle by moving the slider or clicking the
Up or Down arrow.
-
To deselect facets, click ALT +
left mouse button and drag the pointer over the
facets you want to remove.
-
Click
.
