Create Custom Card View Example (VB.NET)

This example shows how to create a custom file card view.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type CustomCardView_VBNET in Name.
'    c. Click Browse and navigate to the folder where to create the project.
'    d. Click OK.
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with
'       this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SOLIDWORKS PDM Professional installation, locate and click
'    EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Check out a file that has a data card with a Comment tab and a
'    Comment variable.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

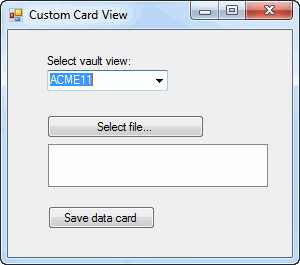

' 1. Displays the Custom Card View dialog box.
' 2. Select a vault view.
' 3. Click Select file.
'    a. In the Select File dialog:
'       1. Click the text file checked out in Preconditions step 4.
'       2. Click Open.
'    b. In the file data card, click the Comment tab.
'    c. Type something in Comments.
' 4. Click Save data card.
' 5. Click OK in the message box.
' 6. Close the Custom Card View dialog box.
' 7. Check in the file and inspect the comment in the file data card.
'----------------------------------------------------------------------------
'Form1.vb

Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm

Public Class Form1
    Implements IEdmCardViewCallback6

    Private vault1 As IEdmVault5
    Dim view As IEdmCardView63
    Dim aFile As IEdmFile7
    Dim aFolder As IEdmFolder5

    Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Try
            vault1 = New EdmVault5()
            Dim vault As IEdmVault10 = DirectCast(vault1, IEdmVault10)
            Dim Views As EdmViewInfo() = Nothing

            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SelectFile_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFile.Click
        Try
            File1List.Items.Clear()

            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            'Set the initial directory in the Select File dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath

            'Show the Select File dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()

            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
                ' do nothing
            Else
                For Each FileName As String In OpenFileDialog1.FileNames
                    File1List.Items.Add(FileName)
                    aFile = vault1.GetFileFromPath(FileName, aFolder)
                    ShowCard(aFolder, aFile.ID)
                Next
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SaveCard_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SaveCard.Click
        Try

            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            view.SaveData()
            SaveCard.Enabled = False

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    'Display the card of the selected file
    Private Sub ShowCard(ByVal folder As IEdmFolder5, ByVal fileID As Integer)
        Try

        If vault1 Is Nothing Then
            vault1 = New EdmVault5()
        End If

        If Not vault1.IsLoggedIn Then
            vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
        End If
        Dim vault As IEdmVault10 = vault1

        Dim params As EdmCardViewParams
        params.mlFileID = fileID
        params.mlFolderID = folder.ID
        params.mlCardID = 0
        params.mlX = 40
        params.mlY = 300
        params.mhParentWindow = Me.Handle.ToInt32()
        params.mlEdmCardViewFlags = EdmCardViewFlag.EdmCvf_Normal

        'Create the card view interface
        view = vault.CreateCardViewEx2(params, Me)

        If view Is Nothing Then
            MsgBox("The file does not have a card.")
            Exit Sub
        End If

        'Set input focus to the first control in the card
        view.SetFocus(0)

        'Enable all controls in the card
        view.Update(EdmCardViewUpdateType.EdmCvut_EnableCtrl)

        'Get the size needed to display the card
        Dim width As Integer
        Dim height As Integer
        view.GetCardSize(width, height)

        'Resize the form window to make room for the card
        Me.Width = (width + 100)
        Me.Height = (height + 400)
        view.ShowWindow(True)

        SaveCard.Enabled = False

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Private Sub EdmCardViewCallback6_SetModifiedFlag() Implements IEdmCardViewCallback6.SetModifiedFlag
        SaveCard.Enabled = True
    End Sub

    Private Sub EdmCardViewCallback6_OnAddInInput(ByVal lFlags As Integer) Implements IEdmCardViewCallback6.OnAddInInput
    End Sub

    Private Sub EdmCardViewCallback6_SetCtrlData(ByVal lCardWnd As Integer, ByVal lCardID As Integer, ByVal lControlID As Integer, ByVal lVariableID As Integer, ByVal bsVariableName As String, ByVal poView As IEdmCardView5, ByRef poValue As Object) Implements IEdmCardViewCallback6.SetCtrlData

        Try
            If bsVariableName = "Comment" Then
                MsgBox(lCardWnd & " " & lCardID & " " & lControlID & " " & lVariableID & " " & bsVariableName & " " & poValue.ToString)

                Dim enumvar As IEdmEnumeratorVariable8
                enumvar = aFile.GetEnumeratorVariable()

                enumvar.SetVar(bsVariableName, "", poValue, True)
                enumvar.CloseFile(True)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Private Function EdmCardViewCallback6_GetCtrlData(ByVal lCardWnd As Integer, ByVal lCardID As Integer, ByVal lControlID As Integer, ByVal lVariableID As Integer, ByVal bsVariableName As String, ByVal poView As IEdmCardView5) As Object Implements IEdmCardViewCallback6.GetCtrlData

        Dim poValue As Object = Nothing
        Try
             Dim enumVar As IEdmEnumeratorVariable5 = aFile.GetEnumeratorVariable()
             enumVar.GetVar(bsVariableName, "", poValue)
          Catch ex As System.Runtime.InteropServices.COMException
              MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
          Catch ex As Exception
              MessageBox.Show(ex.Message)
        End Try
        Return poValue

    End Function

    Private Function EdmCardViewCallback6_GetDefaultValueComponent(ByVal eValue As EdmDefValComp) As Object Implements IEdmCardViewCallback6.GetDefaultValueComponent
        Return Nothing
    End Function


End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.SelectFile = New System.Windows.Forms.Button()
        Me.File1List = New System.Windows.Forms.ListBox()
        Me.SaveCard = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.SuspendLayout()
        '
        'VaultsLabel
        '
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(36, 24)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(39, 40)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'SelectFile
        '
        Me.SelectFile.Location = New System.Drawing.Point(39, 85)
        Me.SelectFile.Name = "SelectFile"
        Me.SelectFile.Size = New System.Drawing.Size(157, 23)
        Me.SelectFile.TabIndex = 2
        Me.SelectFile.Text = "Select file..."
        Me.SelectFile.UseVisualStyleBackColor = True
        '
        'File1List
        '
        Me.File1List.FormattingEnabled = True
        Me.File1List.HorizontalScrollbar = True
        Me.File1List.Location = New System.Drawing.Point(40, 114)
        Me.File1List.Name = "File1List"
        Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
        Me.File1List.Size = New System.Drawing.Size(220, 43)
        Me.File1List.TabIndex = 4
        '
        'SaveCard
        '
        Me.SaveCard.Location = New System.Drawing.Point(40, 176)
        Me.SaveCard.Name = "SaveCard"
        Me.SaveCard.Size = New System.Drawing.Size(107, 23)
        Me.SaveCard.TabIndex = 6
        Me.SaveCard.Text = "Save data card"
        Me.SaveCard.UseVisualStyleBackColor = True
        '
        'OpenFileDialog1
        '
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Title = "Select File"
        '
        'Form1
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 227)
        Me.Controls.Add(Me.SaveCard)
        Me.Controls.Add(Me.File1List)
        Me.Controls.Add(Me.SelectFile)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.VaultsLabel)
        Me.Name = "Form1"
        Me.Text = "Custom Card View"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents SelectFile As System.Windows.Forms.Button
    Friend WithEvents File1List As System.Windows.Forms.ListBox
    Friend WithEvents SaveCard As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog

End Class

Search 'Create Custom Card View Example (VB.NET)' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		Create Custom Card View Example (VB.NET)
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: API Help (English only) 2019 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
