Document Properties > DimXpert > Geometric Tolerance

This topic contains two tables. The information in the table:

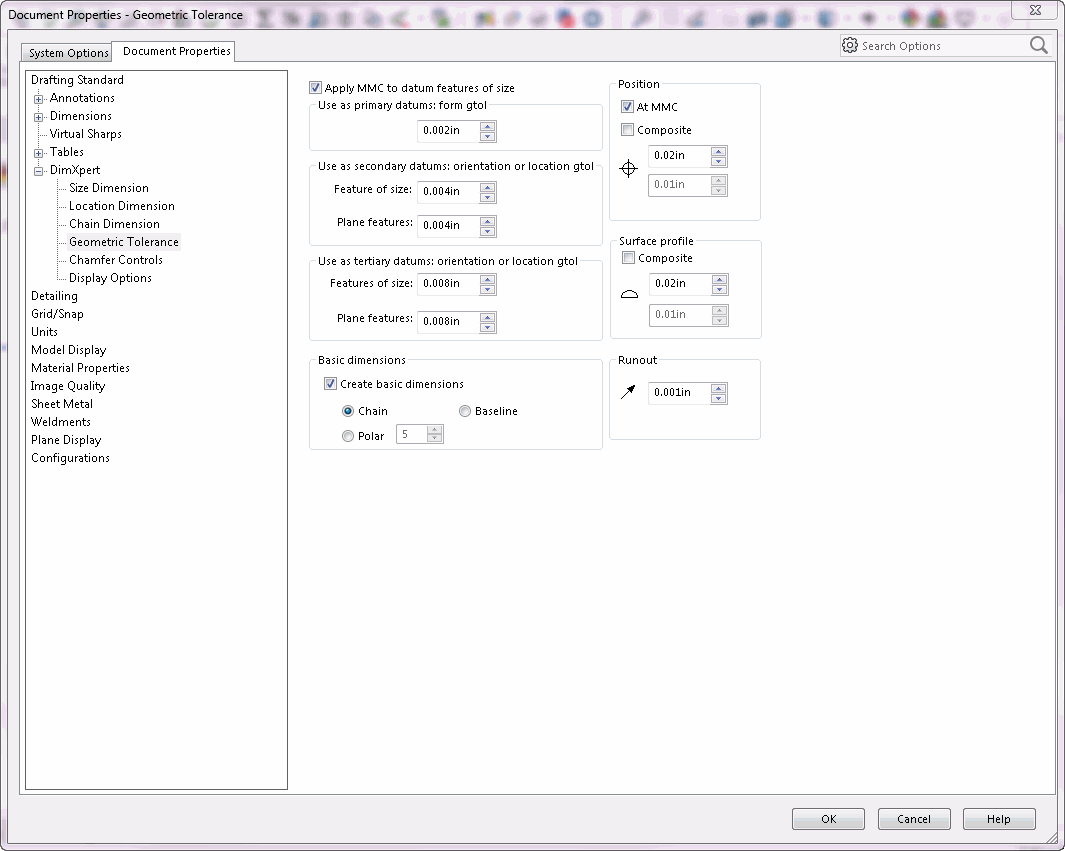

  • appearing immediately after the screen capture corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog, but are now obsolete and no longer appear on that dialog.





Setting

Get/Set Methods

Return Value or <Value>

Comments

Apply MMC to datum features of size

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricApplyMMC, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricApplyMMC, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether an MMC (maximum material condition) symbol is placed in the datum fields when the datum feature is a feature of size

Use as primary datums: form gtol

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPrimaryTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPrimaryTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance value for the form tolerances that are applied to primary datum features

Use as secondary datums: orientation or location gtol - Feature of size

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondFeatureSizeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondFeatureSizeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance value for the orientation and location tolerances that are applied to secondary datum features

Use as secondary datums: orientation or location gtol - Plane features

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondPlaneFeatureTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondPlaneFeatureTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance value for the orientation and location tolerances that are applied to secondary datum features

Use as tertiary datums: orientation of location gtol - Features of size

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdFeatureSizeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdFeatureSizeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance value for the orientation and location tolerances that are applied to tertiary datum features

Use as tertiary datums: orientation or location gtol - Plane features

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdPlaneFeatureTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdPlaneFeatureTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance value for the orientation and location tolerances that are applied to tertiary datum features

Basic dimensions - Create basic dimensions

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricCreateBasicDimension, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricCreateBasicDimension, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to enable the creation of basic dimensions

Basic dimensions - Create basic dimensions - Chain or Baseline or Polar

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swBasicDimType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swBasicDimType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBasicDimType_e.<Value>)

See swBasicDimType_e for valid options

Specifies whether to use chain, baseline, or polar dimension schemes when the creation of basic dimensions is enabled

Basic dimensions - Create basic dimensions - Polar - Minimum # holes

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPolarMinHoles, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPolarMinHoles, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies the minimum number of holes in a polar dimension scheme

Position - At MMC

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionAtMMC, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionAtMMC, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to place an MMC symbol

Position - Composite

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionComposite, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionComposite, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to create composite position tolerances

Position - Tolerance

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets position MMC or position composite tolerance

Position - Composite - Tolerance

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionCompositeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionCompositeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets position composite tolerance

Surface profile - Composite

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricSurfaceProfileComposite, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricSurfaceProfileComposite, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use tolerance values and criteria when creating surface profile tolerances

Surface profile - Tolerance

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets surface profile tolerance

Surface profile - Composite - Tolerance

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileCompositeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileCompositeTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets composite profile tolerance

Runout

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricRunoutTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricRunoutTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Sets the tolerance to use when creating runout tolerances

Obsolete Enumerators

Enumerator

Comment

swPartDimXpertGeometricBasicDimensionChain

Obsolete
