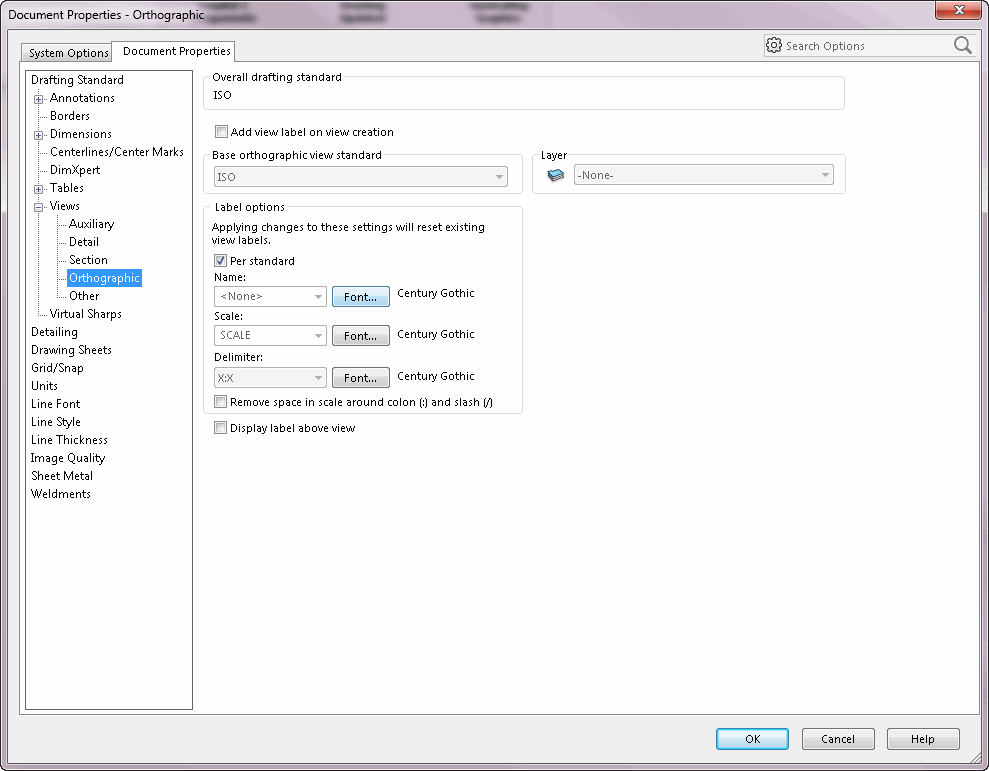

This topic contains two tables. The information in the table:
Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
Add view label on creation |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_AddViewLabelOnViewCreation,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_AddViewLabelOnViewCreation,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to add a view label when a view is created |
Base orthographic view standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingOrthoView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingOrthoView, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base orthographic view standard to use |
Label options - Per standard |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
If... |
Then display the orthographic view label according
to the format... |
True |
Required by the current detailing standard |
False |
Determined by these document-level user preferences:
swDetailingOrthoView_Name
swDetailingOrthoViewLabels_Scale
swDetailingOrthoViewLabels_Delimiter |
|
Label options - Name |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoView_Name,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoView_Name,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsName_e.<Value>) |
See swDetailingViewLabelsName_e
for valid options |
Specifies the label to use in front of the orthographic view; if set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label
options - Name (CUSTOM) to a custom label |
Label options - Name (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomName,
swUserPreferenceOption_e.swDetailingSectionView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomName,
swUserPreferenceOption_e.swDetailingSectionView, <Value>) |
String value |
Specifies the custom label to use in front of the orthographic view; valid only if
Label options - Name is set to
swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom |
Label options - Name - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_NameTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_NameTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Label options - Scale |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsScale_e.<Value>) |
See swDetailingViewLabelsScale_e
for valid options |
Specifies the label to use in front of the scale value; if set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set
Label options - Scale (CUSTOM) to a custom scale label |
Label options - Scale (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomScale,
swUserPreferenceOption_e.swDetailingSectionView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomScale,
swUserPreferenceOption_e.swDetailingSectionView, <Value>) |
String value |
Specifies the custom label to use in front of the scale value; valid only if
Label options - Scale is set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom |
Label options - Scale - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Label options - Delimiter |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsDelimiter_e
.<Value>) |
See swDetailingViewLabelsDelimiter_e
for valid options |
Specifies the format of the scale value |
Label options - Delimiter - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Label options - Remove space in scale around colon (:) and slash (/) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to remove spaces around the delimiter in the scale
text |
Display label above view |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_DisplayLabelAboveView,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_DisplayLabelAboveView,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display the label above the orthographic view |
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingOrthoView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingOrthoView, <Value>) |
Valid Options:
"BORDER"
-
"CENTER"
-
"CONTINUOUS"
"DIM"
-
"FORMAT"
-
"HIDDEN"
-
"RED"
-
"TEXT"
-
"THIN"
|
This setting is available only on drawings; depending on drawing, some
options may not apply |
