System Options > Export

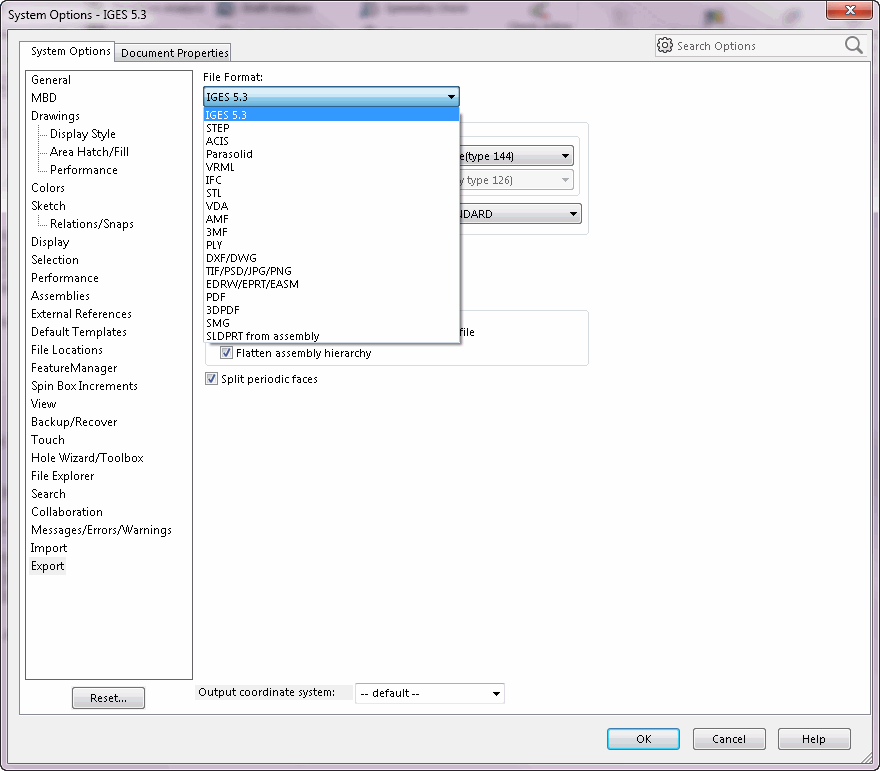

File Format Setting

IGES 5.3 (valid only for parts or assemblies)

STEP (valid only for parts or assemblies)

ACIS (valid only for parts or assemblies)

Parasolid (valid only for parts or assemblies)

VRML (valid only for parts or assemblies)

IFC (valid only for parts or assemblies)

STL (valid only for parts or assemblies)

VDA (not yet supported by the API)

AMF (valid only for parts or assemblies)

3MF (valid only for parts or assemblies)

PLY (valid only for parts or assemblies)

DXF/DWG (valid only for parts or drawings)

TIF/PSD/JPG/PNG

EDRW/EPRT/EASM

PDF

3DPDF (valid only for parts or assemblies)

SMG (not yet supported by the API)

SLDPRT from assembly (valid only for assemblies)
