Pen > Colors |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeColor)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeColor,
<Value>)
|
COLORREF value |

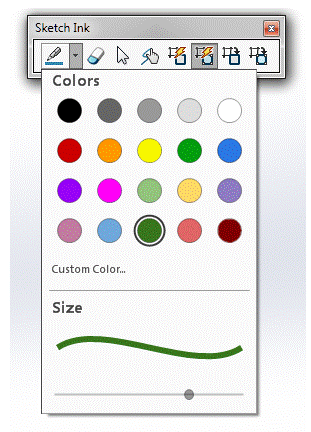

COLORREF values in SOLIDWORKS
IColorTable; use function RGB to convert R,G, and B values to COLORREF
values; the following colors are displayed in the graphic from left to right and
top to bottom: RGB(0,0,0)
RGB(102,102,102)
RGB(153,153,153) RGB(221,221,221)
RGB(255,255,255) RGB(204,0,0)
RGB(255,153,0) RGB(255,255,0)
RGB(0,158,15) RGB(153,0,255)
RGB(255,0,255)
RGB(147,196,125) RGB(255,217,102)
RGB(142,124,195)
RGB(194,123,160) RGB(111,168,220)
RGB(56,118,29)
RGB(224,102,102) RGB(97,61,48) |
|
Pen > Size |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeThickness)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeThickness,
<Value>)
|
Valid options as defined in
swLineWeights_e:
swLW_THIN
swLW_NORMAL
swLW_THICK
swLW_THICK2
swLW_THICK3
swLW_THICK4
swLW_THICK5 |
Thickness of pen stroke; if you set an invalid value (<0 or >6) then the pen
size is automatically set to swLW_THIN = 0 |
