Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

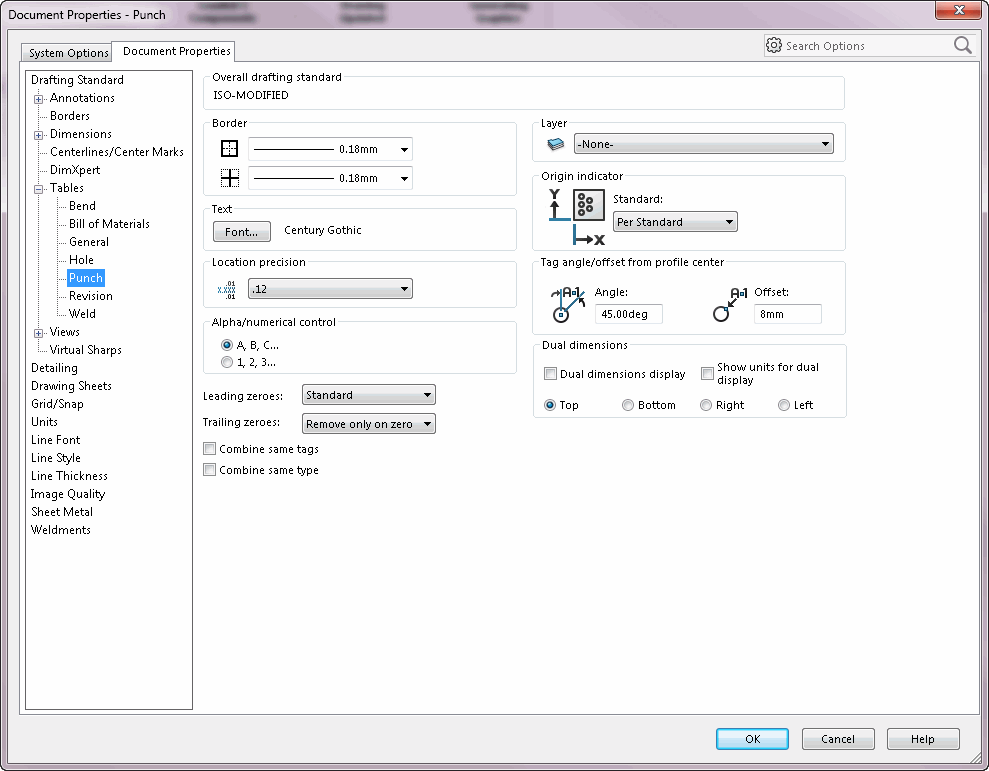

Border - Box Border |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingPunchTableBorderLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingPunchTableBorderLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See
swLineWeights_e for valid options |
|
|
Border - Grid Border |
ModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingPunchTableGridLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingPunchTableGridLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingPunchTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingPunchTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the
set method |
|
Location precision - Unit Precision |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableLocationPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableLocationPrecision,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies the number of digits of precision to display in the
punch table; specify a value from 0 through
8
When setting this value, existing punch tables in the drawing are updated
to use this precision |
|
Alpha/numerical control |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableTagStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableTagStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swPunchTableTagStyle_e.<Value>) |
See
swPunchTableTagStyle_e
for valid options |
Specifies whether the punch tags are alphanumeric or numeric |
|
Leading zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingHoleTable)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingPunchTable, swDetailingLeadingZero_e.<Value>) |
See swDetailingLeadingZero_e
for valid options |
|
|
Trailing zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingHoleTable)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingPunchTable, swDetailingDimTrailingZero_e.<Value>) |
Valid options in swDetailingDimTrailingZero_e:
- swDimShowTrailingZeroes
- swDimRemoveTrailingZeroes
- swDimRemoveOnlyOnZero
- swDimSameAsSource
|
|
|
Combine same tags |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPunchTableCombineTags,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPunchTableCombineTags,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
If true, then punches of the same size are assigned the same tag, and
the punch table contains a Quantity column, which indicates multiple punches
of the same size exist |
|
Combine same tags |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPunchTableCombineSameSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPunchTableCombineSameSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
If true, then punches are the same size, and their cells in the Size column
are merged and appear as a single cell |
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingPunchTable)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingPunchTable, <Value>) |
Valid options:
- "Border"
- "Dimensions"
- "Notes"
- "BOM"
- "FORMAT"
-
"None"
|
This setting is available only on drawings; depending on drawing, some
options may not apply |
|
Origin indicator |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableOriginStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPunchTableOriginStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the detailing standard to use for displaying the
punch table's
origin symbol
If you specify -1 or 0, then the origin symbol is displayed according
to the default document detailing standard; otherwise, the value is from
swDetailingStandard_e and the punch table's origin is displayed according
to that standard
When setting this value, any existing punch tables in the drawing are
updated to use this dimensioning standard
To determine the default document detailing standard, get the value
of the document's integer user preference swDetailingDimensionStardard |
|
Tag angle/offset from profile center - Angle |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPunchTableTagAngle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPunchTableTagAngle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
The origin of the punch tag text is at this angle, in radians, clockwise
from the Y axis at the distance specified by swPunchTableTagOffset (see
the next enumeration); the angle must be between -360° and
360° |
|
Tag angle/offset from profile center - Offset |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPunchTableTagOffset,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPunchTableTagOffset,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
The origin of the punch tag text is this distance from the
punch at the
angle specified by swPunchTableTagAngle (see previous enumeration); the
offset must be > 0 |
|
Dual dimensions - Dual dimensions
display |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTablePunchDualDimensionDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTablePunchDualDimensionDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display dual
dimensions |
|
Dual dimensions - Show units for
dual display |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTablePunchShowUnitsForDualDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTablePunchShowUnitsForDualDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display units
for dual dimensions |
|
Dual dimensions - Position |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTablePunchDualDimensionPos,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTablePunchDualDimensionPos,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See
swDetailingDualDimPosition_e
for valid options |
Specifies the position of punch table dual
dimensions |
