Read and Write to Third-party Storage Example (VB.NET)
This example shows how to read and write to third-party storage in a
document.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Read the SOLIDWORKS Document Manager API Getting Started
' topic and ensure that the required DLLs are registered.
' 2. Start Microsoft Visual Studio 2010.
' 3. Click File > New > Project > Visual Basic > Windows Forms Application.
' a. Type SwDocMgrStorageApp_VBNET in Name.
' b. Click Browse and navigate to the folder where to create
' the project.
' c. Click OK.
' 4. Add references to the project:
' a. Right-click the solution in Solution Explorer.
' b. Click Add Reference.
' c. Click Browse.
' d. Click:
' install_dir\api\redist\CLR2\SolidWorks.Interop.swdocumentmgr.dll
' e. Click Open.
' f. Click Add.
' g. Click Browse.
' h. Click:
' C:\Program Files\Microsoft Visual Studio 11.0\Common7\IDE\Remote Debugger\x64\Microsoft.VisualStudio.OLE.Interop.dll
' i. Click Open.
' j. Click Add.
' k. Click Close.
' 5. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' 6. Replace the code in Form1.vb with this code.
' 7. Replace the code in Form1.Designer.vb with this code.
' 8. Substitute your_license_key with your SOLIDWORKS Document
' Manager license key.
'
' Postconditions:

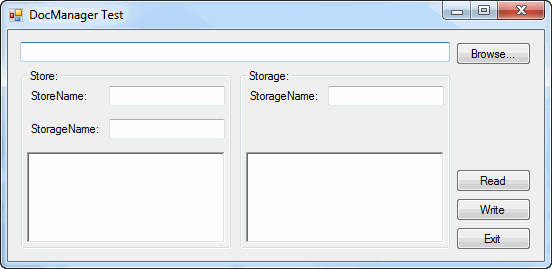

' 1. Displays a dialog.
' 2. Click Browse.
' a. Locate and click a SOLIDWORKS document.
' b. Click Open.
' 3. Type temp in StoreName and in both StorageName
fields.
' 4. Type Some third-party text in both text boxes.
' 5. Click Write.
' 6. Click Exit.
' 7. Press F5.
' 8. In the dialog, click Browse.
' a. Locate and click the document you clicked in step 2a.
' b. Click Open.
' 9. Type temp in StoreName and in both StorageName
fields.
' 10. Click Read.
' 11. Displays Some third-party text in both text boxes.
' 12. Click Exit.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.Collections.Generic
Imports System.ComponentModel
Imports System.Data
Imports System.Drawing
Imports System.Linq
Imports System.Text
Imports System.Windows.Forms
Imports SwDocumentMgr
Imports Microsoft.VisualStudio.OLE.Interop
Imports System.IO
Imports System.Diagnostics
Imports System.Runtime.InteropServices
Public Class Form1
Inherits Form
Public Sub New()
InitializeComponent()
End Sub
Public swDoc19 As SwDMDocument19
Public swDocMgr As SwDMApplication
Public swClassFact As SwDMClassFactory
Public sLicenseKey As String = "your_license_key"
Public Sub btnFile_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFile.Click
OpenFileDialog1.Filter = "SOLIDWORKS Files (*.sldprt;*sldasm;*slddrw)|*.sldprt;*sldasm;*slddrw|SOLIDWORKS Part (*.sldprt)|*.sldprt|SOLIDWORKS Assembly (*.sldasm)|*.sldasm|SOLIDWORKS Drawing (*.slddrw)|*.slddrw"
If OpenFileDialog1.ShowDialog() = System.Windows.Forms.DialogResult.OK Then
txtFileName.Text = OpenFileDialog1.FileName
End If
End Sub
Public Sub btnOpen_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnOpen.Click
OpenFile()
If (swDoc19 IsNot Nothing) Then
If txtStorageName.Text <> String.Empty Then
Read3rdPartyStorageData()
End If
If txtStoreName.Text <> String.Empty AndAlso txtStreamName.Text <> String.Empty Then
Read3rdPartyStorageStoreData()
End If
End If
CloseFile()
Me.Refresh()
End Sub
Public Sub btnSave_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSave.Click
OpenFile()
If (swDoc19 IsNot Nothing) Then
If txtStorageName.Text <> String.Empty Then
Write3rdPartyStorageData()
End If
If txtStoreName.Text <> String.Empty AndAlso txtStreamName.Text <> String.Empty Then
Write3rdPartyStorageStoreData()
End If
End If
rtbStorage.Text = String.Empty
rtbStore.Text = String.Empty
CloseFile()
Me.Refresh()
End Sub
Public Sub btnExit_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExit.Click
Me.Close()
End Sub
Public Sub OpenFile()
If (swDoc19 IsNot Nothing) Then
swDoc19.CloseDoc()
swDoc19 = Nothing
End If
Dim sDocFileName As String = Nothing
Dim nDocType As SwDmDocumentType = 0
Dim nRetVal As SwDmDocumentOpenError = 0
sDocFileName = txtFileName.Text
If sDocFileName.ToLower().EndsWith("sldprt") Then
nDocType = SwDmDocumentType.swDmDocumentPart
ElseIf sDocFileName.ToLower().EndsWith("sldasm") Then
nDocType = SwDmDocumentType.swDmDocumentAssembly
ElseIf sDocFileName.ToLower().EndsWith("slddrw") Then
nDocType = SwDmDocumentType.swDmDocumentDrawing
Else
' Not a SOLIDWORKS file
nDocType = SwDmDocumentType.swDmDocumentUnknown
Return
End If
swClassFact = New SwDMClassFactory()
swDocMgr = TryCast(swClassFact.GetApplication(sLicenseKey), SwDMApplication)
swDoc19 = TryCast(swDocMgr.GetDocument(sDocFileName, nDocType, False, nRetVal), SwDMDocument19)
Debug.Assert(SwDmDocumentOpenError.swDmDocumentOpenErrorNone = nRetVal)
End Sub
Public Sub CloseFile()
If (swDoc19 IsNot Nothing) Then
swDoc19.CloseDoc()
System.Runtime.InteropServices.Marshal.ReleaseComObject(swDoc19)
GC.Collect()
GC.WaitForPendingFinalizers()
GC.Collect()
GC.WaitForPendingFinalizers()
swDoc19 = Nothing
End If
End Sub
Public Sub Read3rdPartyStorageData()
Try
Dim pIStream As IStream = Nothing
pIStream = swDoc19.Get3rdPartyStorage(txtStorageName.Text, False)
If pIStream Is Nothing Then
rtbStorage.Text = "Error: " + "Storage " + txtStorageName.Text + " not found"
Return
End If
Dim strStream As String = Nothing
Dim byteArray As Byte() = New Byte(999) {}
Dim outlength As UInteger = 0
pIStream.Read(byteArray, CUInt(byteArray.Length), outlength)
strStream = Encoding.UTF8.GetString(byteArray)
rtbStorage.Text = strStream.Substring(0, CInt(outlength))
swDoc19.Release3rdPartyStorage(txtStorageName.Text)
System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
GC.Collect()
GC.WaitForPendingFinalizers()
GC.Collect()
GC.WaitForPendingFinalizers()
Catch ex As Exception
rtbStorage.Text = "Error: " + ex.Message
End Try
End Sub
Public Sub Read3rdPartyStorageStoreData()
Try
Dim storage As IStorage = Nothing
storage = swDoc19.Get3rdPartyStorageStore(txtStoreName.Text, False)
If storage Is Nothing Then
rtbStore.Text = "Error: " + "Store " + txtStoreName.Text + " not found"
Return
End If
Dim pIStream As IStream = Nothing
Dim grfmode As Integer = 0
grfmode = grfmode Or CInt(STGM.SHARE_EXCLUSIVE)
storage.OpenStream(txtStreamName.Text, IntPtr.Zero, CUInt(grfmode), 0, pIStream)
If pIStream Is Nothing Then
rtbStore.Text = "Error: " + "Stream " + txtStreamName.Text + " not found"
Return
End If
Dim strStream As String = Nothing
Dim byteArray As Byte() = New Byte(999) {}
Dim outlength As UInteger = 0
pIStream.Read(byteArray, CUInt(byteArray.Length), outlength)
strStream = Encoding.UTF8.GetString(byteArray)
rtbStore.Text = strStream
System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
GC.Collect()
GC.WaitForPendingFinalizers()
GC.Collect()
GC.WaitForPendingFinalizers()
swDoc19.Release3rdPartyStorageStore(txtStoreName.Text)
Catch ex As Exception
rtbStore.Text = "Error: " + ex.Message
End Try
End Sub
Public Sub Write3rdPartyStorageData()
Try
Dim pIStream As IStream = Nothing
pIStream = swDoc19.Get3rdPartyStorage(txtStorageName.Text, True)
If pIStream Is Nothing Then
rtbStorage.Text = "Error: " + "Storage " + txtStorageName.Text + " not found"
Return
End If
Dim strStream As Byte() = Nothing
strStream = Encoding.UTF8.GetBytes(rtbStorage.Text)
Dim outlength As UInteger = 0
pIStream.Write(strStream, CUInt(strStream.Length), outlength)
System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
GC.Collect()
GC.WaitForPendingFinalizers()
GC.Collect()
GC.WaitForPendingFinalizers()
swDoc19.Release3rdPartyStorage(txtStorageName.Text)
swDoc19.Save()
Catch ex As Exception
rtbStorage.Text = "Error: " + ex.Message
End Try
End Sub
Public Sub Write3rdPartyStorageStoreData()
Try
Dim storage As IStorage = Nothing
storage = swDoc19.Get3rdPartyStorageStore(txtStoreName.Text, True)
If storage Is Nothing Then
rtbStore.Text = "Error: " + "Store " + txtStoreName.Text + " not found"
Return
End If
Dim pIStream As IStream = Nothing
Dim grfmode As Integer = 0
grfmode = grfmode Or CInt(STGM.SHARE_EXCLUSIVE)
grfmode = grfmode Or CInt(STGM.READWRITE)
grfmode = grfmode Or CInt(STGM.CREATE)
storage.CreateStream(txtStreamName.Text, CUInt(grfmode), 0, 0, pIStream)
If pIStream Is Nothing Then
rtbStore.Text = "Error: " + "Stream " + txtStreamName.Text + " not found"
Return
End If
Dim strStream As Byte() = Nothing
strStream = Encoding.UTF8.GetBytes(rtbStore.Text)
Dim outlength As UInteger = 0
pIStream.Write(strStream, CUInt(strStream.Length), outlength)
System.Runtime.InteropServices.Marshal.ReleaseComObject(storage)
System.Runtime.InteropServices.Marshal.ReleaseComObject(pIStream)
GC.Collect()
GC.WaitForPendingFinalizers()
GC.Collect()
GC.WaitForPendingFinalizers()
swDoc19.Release3rdPartyStorageStore(txtStoreName.Text)
swDoc19.Save()
Catch ex As Exception
rtbStore.Text = "Error: " + ex.Message
End Try
End Sub
<Flags()> _
Public Enum STGM As UInteger
DIRECT = &H0
TRANSACTED = &H10000
SIMPLE = &H8000000
READ = &H0
WRITE = &H1
READWRITE = &H2
SHARE_DENY_NONE = &H40
SHARE_DENY_READ = &H30
SHARE_DENY_WRITE = &H20
SHARE_EXCLUSIVE = &H10
PRIORITY = &H40000
DELETEONRELEASE = &H4000000
NOSCRATCH = &H100000
CREATE = &H1000
CONVERT = &H20000
FAILIFTHERE = &H0
NOSNAPSHOT = &H200000
DIRECT_SWMR = &H400000
End Enum
End Class
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.rtbStorage = New System.Windows.Forms.RichTextBox()
Me.rtbStore = New System.Windows.Forms.RichTextBox()
Me.btnExit = New System.Windows.Forms.Button()
Me.btnSave = New System.Windows.Forms.Button()
Me.btnOpen = New System.Windows.Forms.Button()
Me.btnFile = New System.Windows.Forms.Button()
Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
Me.txtFileName = New System.Windows.Forms.TextBox()
Me.groupBox1 = New System.Windows.Forms.GroupBox()
Me.txtStoreName = New System.Windows.Forms.TextBox()
Me.label1 = New System.Windows.Forms.Label()
Me.label3 = New System.Windows.Forms.Label()
Me.txtStreamName = New System.Windows.Forms.TextBox()
Me.groupBox2 = New System.Windows.Forms.GroupBox()
Me.label5 = New System.Windows.Forms.Label()
Me.txtStorageName = New System.Windows.Forms.TextBox()
Me.groupBox1.SuspendLayout()
Me.groupBox2.SuspendLayout()
Me.SuspendLayout()
'
' rtbStorage
'
Me.rtbStorage.Location = New System.Drawing.Point(6, 83)
Me.rtbStorage.Name = "rtbStorage"
Me.rtbStorage.Size = New System.Drawing.Size(198, 91)
Me.rtbStorage.TabIndex = 15
Me.rtbStorage.Text = ""
'
' rtbStore
'
Me.rtbStore.Location = New System.Drawing.Point(6, 83)
Me.rtbStore.Name = "rtbStore"
Me.rtbStore.Size = New System.Drawing.Size(198, 91)
Me.rtbStore.TabIndex = 14
Me.rtbStore.Text = ""
'
' btnExit
'
Me.btnExit.Location = New System.Drawing.Point(448, 197)
Me.btnExit.Name = "btnExit"
Me.btnExit.Size = New System.Drawing.Size(75, 23)
Me.btnExit.TabIndex = 13
Me.btnExit.Text = "Exit"
Me.btnExit.UseVisualStyleBackColor = True
'Me.btnExit.Click += New System.EventHandler(Me.btnExit_Click)
'
' btnSave
'
Me.btnSave.Location = New System.Drawing.Point(448, 168)
Me.btnSave.Name = "btnSave"
Me.btnSave.Size = New System.Drawing.Size(75, 23)
Me.btnSave.TabIndex = 12
Me.btnSave.Text = "Write"
Me.btnSave.UseVisualStyleBackColor = True
'Me.btnSave.Click += New System.EventHandler(Me.btnSave_Click)
'
' btnOpen
'
Me.btnOpen.Location = New System.Drawing.Point(448, 139)
Me.btnOpen.Name = "btnOpen"
Me.btnOpen.Size = New System.Drawing.Size(75, 23)
Me.btnOpen.TabIndex = 11
Me.btnOpen.Text = "Read"
Me.btnOpen.UseVisualStyleBackColor = True
'Me.btnOpen.Click += New System.EventHandler(Me.btnOpen_Click)
'
' btnFile
'
Me.btnFile.Location = New System.Drawing.Point(448, 12)
Me.btnFile.Name = "btnFile"
Me.btnFile.Size = New System.Drawing.Size(75, 23)
Me.btnFile.TabIndex = 10
Me.btnFile.Text = "Browse..."
Me.btnFile.UseVisualStyleBackColor = True
'Me.btnFile.Click += New System.EventHandler(Me.btnFile_Click)
'
' OpenFileDialog1
'
Me.OpenFileDialog1.FileName = "OpenFileDialog1"
'
' txtFileName
'
Me.txtFileName.Location = New System.Drawing.Point(12, 12)
Me.txtFileName.Name = "txtFileName"
Me.txtFileName.Size = New System.Drawing.Size(430, 20)
Me.txtFileName.TabIndex = 9
'
' groupBox1
'
Me.groupBox1.Controls.Add(Me.label3)
Me.groupBox1.Controls.Add(Me.txtStreamName)
Me.groupBox1.Controls.Add(Me.label1)
Me.groupBox1.Controls.Add(Me.txtStoreName)
Me.groupBox1.Controls.Add(Me.rtbStore)
Me.groupBox1.Location = New System.Drawing.Point(13, 39)
Me.groupBox1.Name = "groupBox1"
Me.groupBox1.Size = New System.Drawing.Size(210, 180)
Me.groupBox1.TabIndex = 18
Me.groupBox1.TabStop = False
Me.groupBox1.Text = "Store:"
'
' txtStoreName
'
Me.txtStoreName.Location = New System.Drawing.Point(88, 17)
Me.txtStoreName.Name = "txtStoreName"
Me.txtStoreName.Size = New System.Drawing.Size(116, 20)
Me.txtStoreName.TabIndex = 15
'
' label1
'
Me.label1.AutoSize = True
Me.label1.Location = New System.Drawing.Point(7, 20)
Me.label1.Name = "label1"
Me.label1.Size = New System.Drawing.Size(63, 13)
Me.label1.TabIndex = 16
Me.label1.Text = "StoreName:"
'
' label3
'
Me.label3.AutoSize = True
Me.label3.Location = New System.Drawing.Point(7, 53)
Me.label3.Name = "label3"
Me.label3.Size = New System.Drawing.Size(75, 13)
Me.label3.TabIndex = 18
Me.label3.Text = "StorageName:"
'
' txtStreamName
'
Me.txtStreamName.Location = New System.Drawing.Point(88, 50)
Me.txtStreamName.Name = "txtStreamName"
Me.txtStreamName.Size = New System.Drawing.Size(116, 20)
Me.txtStreamName.TabIndex = 17
'
' groupBox2
'
Me.groupBox2.Controls.Add(Me.rtbStorage)
Me.groupBox2.Controls.Add(Me.label5)
Me.groupBox2.Controls.Add(Me.txtStorageName)
Me.groupBox2.Location = New System.Drawing.Point(232, 39)
Me.groupBox2.Name = "groupBox2"
Me.groupBox2.Size = New System.Drawing.Size(210, 180)
Me.groupBox2.TabIndex = 19
Me.groupBox2.TabStop = False
Me.groupBox2.Text = "Storage:"
'
' label5
'
Me.label5.AutoSize = True
Me.label5.Location = New System.Drawing.Point(7, 20)
Me.label5.Name = "label5"
Me.label5.Size = New System.Drawing.Size(75, 13)
Me.label5.TabIndex = 16
Me.label5.Text = "StorageName:"
'
' txtStorageName
'
Me.txtStorageName.Location = New System.Drawing.Point(88, 17)
Me.txtStorageName.Name = "txtStorageName"
Me.txtStorageName.Size = New System.Drawing.Size(116, 20)
Me.txtStorageName.TabIndex = 15
'
' Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0F, 13.0F)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(536, 231)
Me.Controls.Add(Me.btnExit)
Me.Controls.Add(Me.btnSave)
Me.Controls.Add(Me.btnOpen)
Me.Controls.Add(Me.btnFile)
Me.Controls.Add(Me.txtFileName)
Me.Controls.Add(Me.groupBox1)
Me.Controls.Add(Me.groupBox2)
Me.MaximumSize = New System.Drawing.Size(552, 269)
Me.MinimumSize = New System.Drawing.Size(552, 269)
Me.Name = "Form1"
Me.Text = "DocManager Test"
Me.groupBox1.ResumeLayout(False)
Me.groupBox1.PerformLayout()
Me.groupBox2.ResumeLayout(False)
Me.groupBox2.PerformLayout()
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents rtbStorage As System.Windows.Forms.RichTextBox
Friend WithEvents rtbStore As System.Windows.Forms.RichTextBox
Friend WithEvents btnExit As System.Windows.Forms.Button
Friend WithEvents btnSave As System.Windows.Forms.Button
Friend WithEvents btnOpen As System.Windows.Forms.Button
Friend WithEvents btnFile As System.Windows.Forms.Button
Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
Friend WithEvents txtFileName As System.Windows.Forms.TextBox
Private groupBox1 As System.Windows.Forms.GroupBox
Private label3 As System.Windows.Forms.Label
Private txtStreamName As System.Windows.Forms.TextBox
Private label1 As System.Windows.Forms.Label
Private txtStoreName As System.Windows.Forms.TextBox
Private groupBox2 As System.Windows.Forms.GroupBox
Private label5 As System.Windows.Forms.Label
Private txtStorageName As System.Windows.Forms.TextBox
End Class
