Edit Flattened Route PropertyManager - Manufacture Style

To open the Edit Flatten Route PropertyManager:

Right-click a manufacture-style flattened route in the FeatureManager design tree and select Edit Flattened Route.

Edit Tools

Flattened Route Center		Changes the position of the Flattened Route Center between two points in the Route Sketch Segment.
Segment		Specifies the selected line, spline, or arc segment to edit.
Straighten		Straightens the selected spline or arc segment to a specified degree. The software highlights the route segment in the graphics area that you want to straighten.
Reverse direction		Reverses the direction in which you apply straightening.
Apply to entire route segment		Straightens all branches of the route segment.

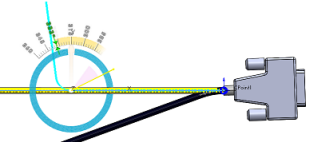

Add Bend		Specifies the position (in percentage), radius, and bend angle of a selected segment. You can add bend using triad or PropertyManager.
Adjust Angle		Specifies the angle of a selected line or arc segment. You can add angle using triad or PropertyManager. Adjust angle from X-axis Adjusts the angle of a line or an arc from the X-axis.
Flip Horizontal \ Vertical		Flips any route segment horizontally or vertically with respect to the Flattened Route Center.
Adjust Fanout		Enables you to manipulate and position fanout segments.
Edit Position Percentage		Specifies the edit position of the selected line or arc segment. You can drag the edit position along the segment in the graphics area.
Radius		Specifies the radius of the selected segment.
Bend Angle		Specifies the bend angle the selected segment makes with the horizontal.
Angle		Specifies the angle the selected segment makes with the horizontal.
Apply		Applies the edit to the selected segment.

A red line indicating the edit appears in the graphics area when you use the edit tools.

Formboard Edge Location

X-Coordinate		Specifies x-coordinate of the center of the formboard boundary.
Y-Coordinate		Specifies y-coordinate of the center of the formboard boundary.
