A boundary spans two or more profiles in one or two directions. A boundary can be a base, boss, cut, or surface.
![](blj1466172777794.image)
![](egs1466173161036.image)
Boundaries follow the profiles specified in Direction 1 (blue) and Direction 2 (purple).
![](eem1466173624794.image)
The Boundary Surface feature can create surfaces that span the extents of Direction 1 and Direction 2
![](ngf1466173691470.image)

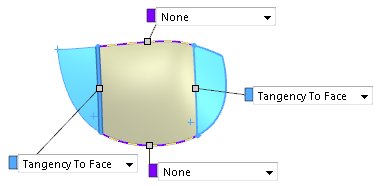

A Boundary Surface can be used instead of a Filled Surface for a more controllable transition between faces.
![](cwo1466173797200.image)
A Boundary Cut is created in the same way as a Boundary Boss/Base, but the volume of the feature is removed.
